Brand: HAMMER
COMPARETire removal and installation machine for cars and light vehicles
Model: JA-C01
Country of Origin: China

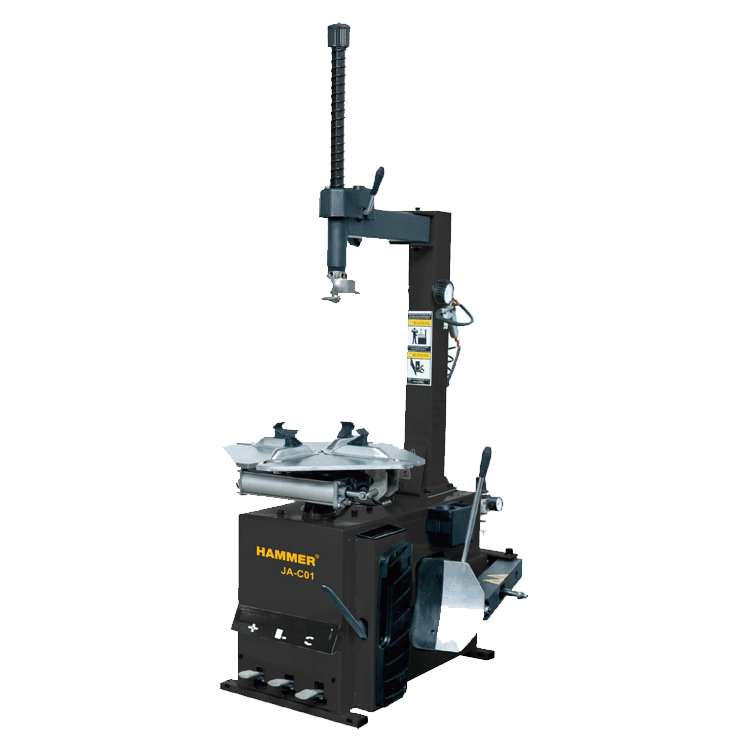

JA-C01 Tire Changer Machine – Professional Tire Mounting & Demounting Solution
The JA-C01 Tire Changer Machine is a practical solution designed to provide fast and accurate tire changing operations for passenger cars and light-duty vehicles.
It features a reliable Swing Arm System that offers easy movement, stable clamping, and efficient tire mounting/demounting across a wide range of wheel sizes.
With its durable frame, integrated power unit, and enhanced bead breaker arm, this machine ensures smooth daily operation and high productivity in automotive service centers and tire shops.
Practical Swing Arm Operation
Provides easy handling and smooth tire changing performance.
Wide Clamping Range
Supports external clamping from 10" to 20" and internal clamping from 12" to 22".
Enhanced Bead Breaker Arm
Allows easier removal of stiff and hard tires.
Stainless Steel Duckhead
Offers higher durability and corrosion resistance.
Integrated Power Unit
Ensures stable and consistent machine performance.
Built-In Pressure Gauge
For accurate tire inflation monitoring.
Oil-Water Separator
Protects pneumatic components and extends machine life.
Optional Accessories Support
Compatible with motorcycle adapters and larger turntable options.
| Name | - |
|---|---|
| Operating System | Swing Arm System |
| External Clamping | 10" – 20 |
| Internal Clamping | 12" – 22 |
| Max Tire Diameter | 1000 mm |
| Max Tire Width | 3" – 14 |
| Working Pressure | 8 – 10 bar |
| Motor Power | 0.37 kW |
| Voltage | 110V / 220V / 380V |
| Machine Dimensions | 1000 × 900 × 1840 mm |
| Net Weight | 164 kg |
| Gross Weight | 184 kg |
