Brand: HAMMER
COMPARETire removal and installation machine with assist arm up to 24 inches
Model: JA-C08
Country of Origin: China

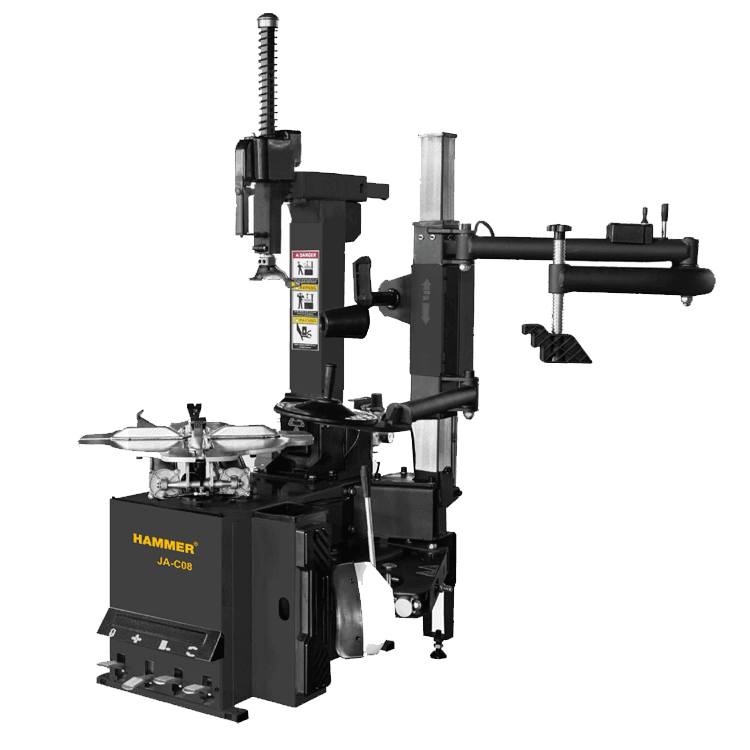

JA-C08 Tire Changer Machine – Professional Helper Arm Tire Changer up to 24”
The JA-C08 Tire Changer Machine is a professional-grade solution designed to provide higher power and greater flexibility when handling difficult tires and larger wheel sizes.
This model combines a Tilting Back Column with an advanced Helper Arm System, giving the operator better control over wide, stiff, or low-profile tires during mounting and demounting.
With its reinforced base, push-down helper arm, and large turntable, the JA-C08 ensures stable performance and faster service for passenger cars, SUVs, light commercial vehicles, and motorcycles.
Tilting Back Column with Helper Arm
Provides easier handling for larger and harder tires.
Push Down Helper Arm System
Assists in pressing and stabilizing the tire during operation.
Wide Clamping Capacity up to 24"
Supports external clamping from 10" to 21" and internal clamping from 12" to 24".
Enhanced Bead Breaker Arm
Offers stronger tire bead separation while protecting the wheel.
24" Turntable
Suitable for a wide range of wheel sizes.
Integrated Power Unit & Reinforced Base
Ensures stable heavy-duty performance.
Built-In Tire Inflator with Pressure Gauge
Allows accurate inflation pressure monitoring.
Oil-Water Separator
Protects pneumatic components and extends machine life.
Optional Upgrades Available
Supports 26" turntable, motorcycle adapter, and automatic mount head.
| Name | - |
|---|---|
| Operating System | Tilting Back Type with Helper Arm |
| External Clamping | 10" – 21 |
| Internal Clamping | 12" – 24 |
| Max Tire Diameter | 1000 mm |
| Max Tire Width | 13" |
| Working Pressure | 8 – 10 bar |
| Motor Power | 0.37 kW |
| Voltage | 110V / 220V / 380V |
| Machine Dimensions | 1600 × 1450 × 1870 mm |
| Net Weight | 298 kg |
| Gross Weight | 344 kg |
