Brand: HAMMER
COMPARETire removal and installation machine up to 24 inches
Model: JA-C06
Country of Origin: China

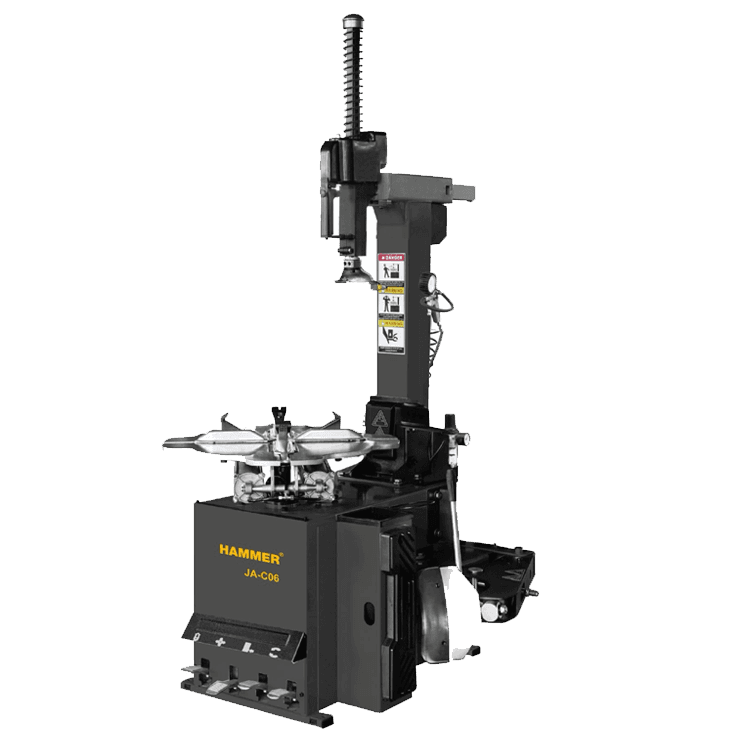

JA-C06 Tire Changer Machine – Tilting Back Professional Wheel Service Machine
The JA-C06 Tire Changer Machine is a professional-grade solution designed to provide greater flexibility and easier handling for different tire and wheel sizes.
This model features a Tilting Back Column design, offering improved workspace and faster mounting/demounting operations, making it ideal for intensive daily tire service.
With its extended clamping range, reinforced base, and powerful bead breaker arm, the JA-C06 delivers stable and efficient performance for passenger cars, SUVs, light commercial vehicles, and motorcycles.
Tilting Back Column Design
Provides wider working space and easier handling for larger tires.
Extended Clamping Capacity
Supports external clamping from 10" to 21" and internal clamping from 12" to 24".
Enhanced Bead Breaker Arm
Ensures easier removal of stiff tire beads.
Stainless Steel Duckhead
Protects wheels and offers long-term durability.
Reinforced Machine Base
Provides extra stability during heavy-duty operation.
Integrated Power Unit
Ensures smooth and stable machine performance.
Built-In Tire Inflator with Pressure Gauge
Allows accurate inflation pressure monitoring.
Oil-Water Separator
Protects pneumatic components and extends service life.
Optional Accessories Available
Supports larger turntable, motorcycle adapter, and storage cabinet.
| Name | - |
|---|---|
| Operating System | Tilting Back Type |
| External Clamping | 10" – 21 |
| Internal Clamping | 12" – 24 |
| Max Tire Diameter | 1000 mm |
| Max Tire Width | 3" – 14 |
| Working Pressure | 8 – 10 bar |
| Motor Power | 0.37 kW |
| Voltage | 110V / 220V / 380V |
| Machine Dimensions | 1030 × 900 × 930 mm |
| Net Weight | 222 kg |
| Gross Weight | 252 kg |
