Brand: HAMMER
COMPAREOil Extractor & Drain Tank 25 l
Model: HC-2085
Country of Origin: China

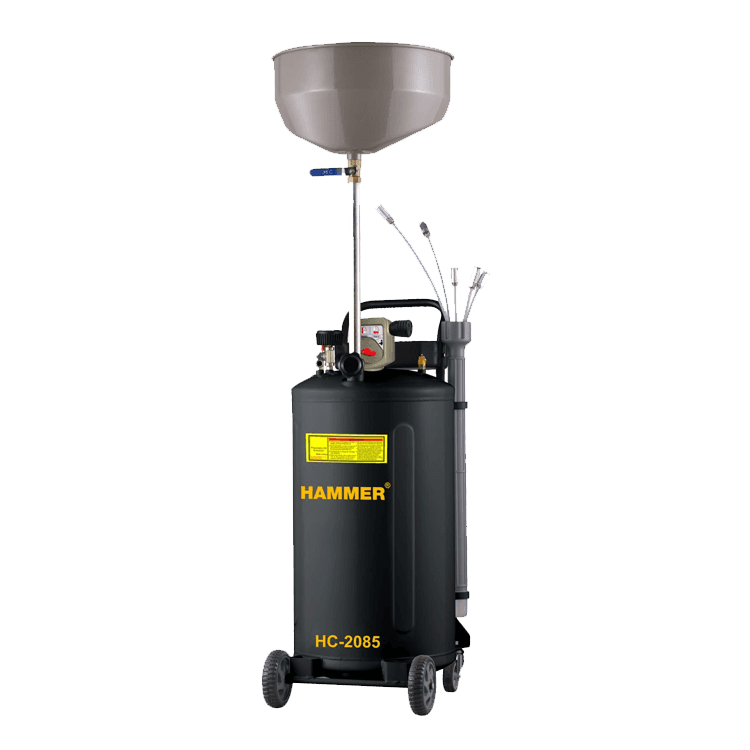

HC-2085 Pneumatic Oil Extractor & Drain Tank – 65L Capacity
The HC-2085 Oil Extractor & Drain Tank is a professional pneumatic solution designed for fast and efficient used oil extraction in automotive service centers and maintenance workshops.
The machine operates using a pneumatic system that ensures smooth oil suction while keeping the workspace clean and improving service efficiency.
With a 65-liter main tank, 360° rotating collection bowl, and suction speed up to 6.5L/min, the HC-2085 provides reliable performance for passenger cars and light commercial vehicles.
High Efficiency Pneumatic System
Provides stable suction performance for faster oil changing operations.
65L Main Tank Capacity
Allows large volume oil collection with fewer emptying cycles.
16L Upper Collection Bowl
Improves oil draining convenience during service.
360° Rotating Collection Bowl
Offers greater flexibility and easier positioning during operation.
Fast Suction Speed up to 6.5L/min
Reduces service time and improves workshop productivity.
Adjustable Height Design
Height can be adjusted from 1030 mm to 1630 mm.
Suitable for Multiple Vehicle Types
Compatible with passenger cars and light commercial vehicles.
Cleaner & Safer Oil Changing Process
Helps reduce oil spills inside the workspace.
| Name | - |
|---|---|
| Air Inlet Pressure | 87 – 116 PSI |
| Air Inlet Connection | 1/4 inch |
| Vacuum Degree | -1 to 0 bar |
| Oil Discharge Pressure | 0.7 – 1 bar |
| Operating Temperature | 40 – 60°C |
| Suction Speed | 6.5 L/min |
| Collection Bowl Capacity | 16L |
| Main Tank Capacity | 65L |
| Adjustable Height | 1030 – 1630 mm |
| Net Weight | 18.5 kg |
| Gross Weight | 21 kg |
| Dimensions | 470 × 440 × 940 mm |
