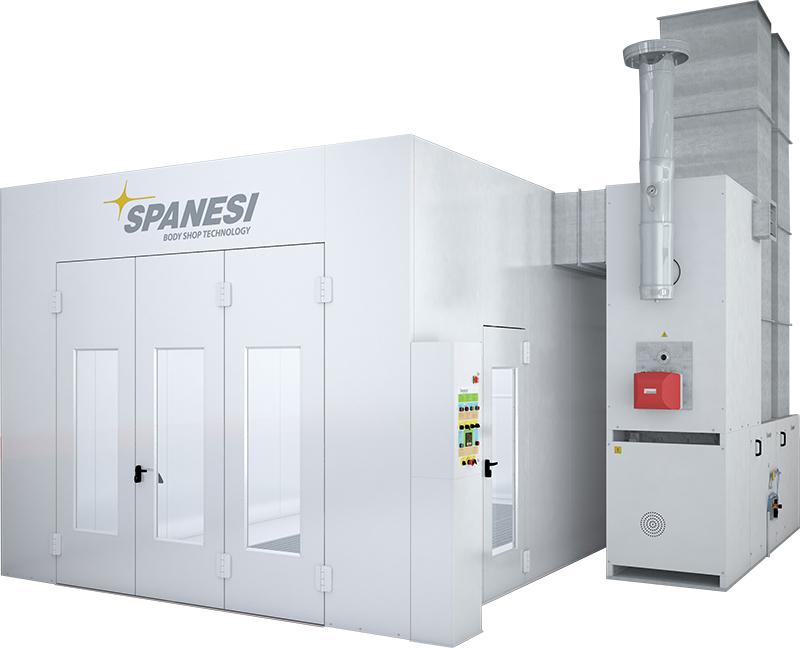

Car painting booth

1. Technical Specifications & Control Systems

• Motor Power:
  Equipped with motors rated at 11 + 11 kW, ensuring powerful and stable operation during both spraying and drying cycles.

• Airflow Capacity:
  Nominal airflow capacity of 34,000 m³/h, delivering optimal air circulation and uniform airflow distribution inside the booth.

• Burner System:
  Fitted with a Modulating Direct Fire Burner, providing precise temperature control and high energy efficiency.

• Control System:
  Supplied as standard with an advanced electronic membrane control panel, allowing easy and accurate management of all operating functions.

2. Dimensions & Structure

The Giotto spray booth is available in multiple size configurations to suit different workshop layouts:

• External Length: 6.00 m / 7.00 m / 8.00 m

• External Width: 4.11 m

• External Height: 3.40 m or 3.70 m

3. Standard Features

• Main Entrance:
  Front entrance with a three-door main access design for smooth vehicle entry and exit.

• Lighting System:
  High-efficiency top lighting system providing clear and consistent illumination during painting operations.

• Basement:
  Civil work concrete basement equipped with three rows of grilles to ensure effective airflow and overspray extraction.

4. Optional Configuration

The Giotto spray booth can be customized with the following optional features:

• 10-inch touch screen control panel

• Inverter system for motor speed control and energy savings

• Automatic electronic pressure balance system

• Bottom lighting or full LED lighting kits for enhanced visibility

• Filter clogging monitoring sensors with display

• Stainless steel front finishing for improved durability and a modern appearance

5. Standards & Compliance

Spanesi is certified according to ISO 9001:2015, and all spray booths are manufactured using advanced technologies to ensure consistent quality, safety, and maximum customer satisfaction.
