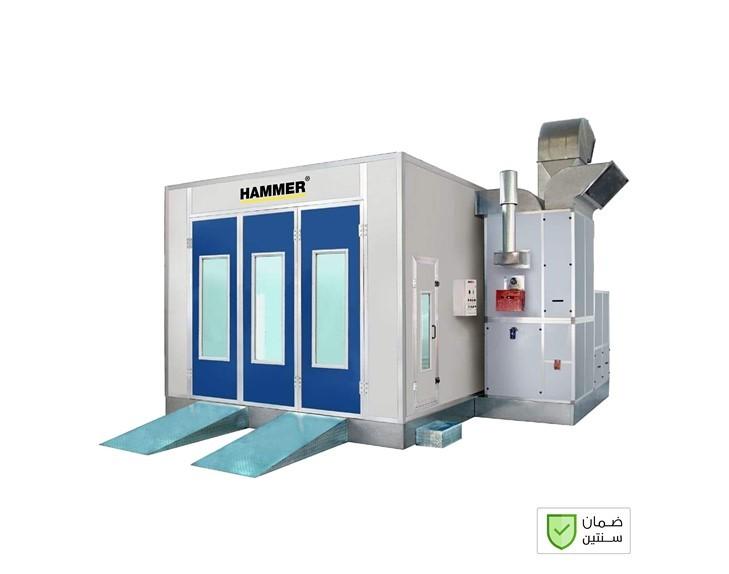

The ESB-O car spray booth features high-quality components that provide excellent efficiency and significant savings in energy, time, and cost. The booth ensures stable and professional performance during the painting of passenger cars and light commercial vehicles, delivering precise and effective results.
It is equipped with a high-efficiency top and side lighting system and a sophisticated control unit for managing temperature, lighting, and emergency stops. The booth is resistant to high temperatures and electrical overloads, and features a high-efficiency heat exchanger for recirculating hot air, along with air turbines to ensure optimal working conditions and professional performance during painting.
1. Dimensions & Structure
External Dimensions: 7,000 × 5,350 × 3,400 mm (L × W × H)
Internal Dimensions: 6,900 × 3,900 × 2,650 mm, providing a comfortable workspace suitable for all car sizes.
Wall Panels: Made of 50 mm thermal wool, heat-resistant to ensure excellent insulation, high safety, and protection of internal equipment.
Ceiling: Interlocking design covered with 0.426 mm steel sheet for durability and proper ventilation.
2. Professional Lighting System (Lighting System)
Top Lighting: 10 LED units, 5 on the right side and 5 on the left side, each unit with 2 × 36 W lamps, providing strong, uniform lighting without shadows.
Side Lighting: High-efficiency side LED lights to ensure precise visibility during painting and drying.
3. Technical Specifications & Control Systems
A. Makeup Air Unit
Air Preparation Unit: 1,700 × 1,250 × 2,200 mm, galvanized steel frame 1.5 mm thick with triple aluminum airflow path.
Exhaust Turbines (Suction): 2 × 3 kW, total 6 kW, capacity 21,000 m³/h for stable and strong airflow.
Exhaust Turbine: 1 × 5.5 kW, total capacity 18,000 m³/h for efficient air extraction.
B. Advanced Filtration System
Ceiling Filter: Mounted on oil-painted surface, type Sp-600 G, F5 Grade EN779.
Floor Filter: Made of fiberglass, area 10.35 m², PA-50, EN779, Grade G3, to collect overspray and prevent accumulation.
Preparation Unit Filter: G3 Grade EN779, C16-300, made of fiberglass to ensure clean air during spraying.
C. Full Control System
Control Panel: Controls for temperature, time, drying, spraying, left & right lighting, pressure and fault indicators, and emergency stop.
Air Preparation Control: Pneumatic gate to allow fresh air during spraying or closure during drying.
D. Burners & Heat Exchanger
Burner: Diesel-operated, Riello G20.
Heat Exchanger: Made of 1.5 mm stainless steel, equipped with explosion-proof vent and chimney, capacity 200 kW.
4. Floor Components
Height 300 mm, two layers of galvanized grilles with 3 rows of embossed galvanized steel.
Two slopes, each 520 × 2,000 mm (W × H).
5. Main Door & Service Door
Main Door: 3 units × 3,000 × 2,600 mm, formed steel with thermal glass inside a metal circular frame.
Service Door: 700 × 2,000 mm, with thermal glass inside a metal circular frame.
6. Optional Configuration
The booth can be enhanced with additional units such as advanced filtration systems, air quality sensors, and explosion-proof systems.
| Name | - |
|---|---|
| Structure | • Made of galvanized steel, thickness 1.5 mm • Tri-directional aluminum air duct system |
| Burners | • Riello G20 (Italian), diesel-operated • Heating capacity: 200,000 kcal/h |
| Dimensions | 1,700 * 1,250 * 2,200 mm |
| INTERNAL DIMENSIONS | 6,900 × 3,900 × 2,650 mm |
| EXTERNAL DIMENSIONS | 7,000 × 5,350 × 3,400 mm |
| MAIN DOOR | 3 units, each 3,000 × 2,600 mm |
| SERVICE DOOR | 1 unit, 700 × 2,000 mm |
| WALLS | • Panel thickness: 50 mm • Panel width: 1,000 mm • Thermal insulation: 0.426 mm mineral wool with interlocking joint system, covered on both sides with galvanized steel sheets. |
| CEILING | • 0.426 mm mineral wool insulation with interlocking system, covered on both sides with galvanized steel sheets |
| TOP LIGHTING | 10 units (5 on the left, 5 on the right), each unit contains 4 lamps, 36W each. |
| SIDE LIGHTING | 10 units (5 on the left, 5 on the right), each unit contains 2 lamps, 36W each. |
| HEAT EXCHANGER | • Made of stainless steel, thickness 1.5 mm • Equipped with an explosion protection opening • Includes 2 chimneys: one 200 kW stainless steel chimney (2 m), and one galvanized steel chimney (3 m) with rain protection cover |
| Insulation | Made with an interlocking system, the thermal insulation is covered on both sides with steel sheets of 0.426 mm thickness |
