Brand: TELWIN
COMPARETELWIN TECHNOMIG 225 DUAL SYNERGIC

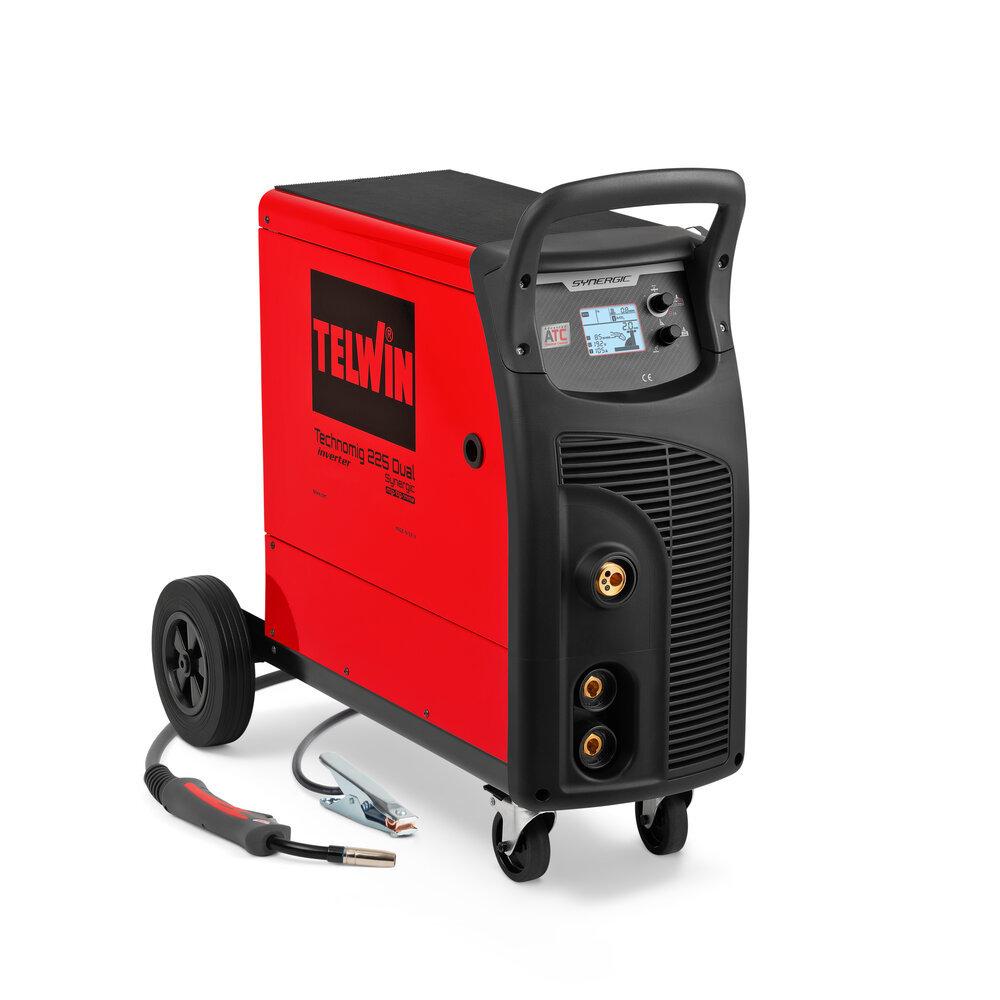

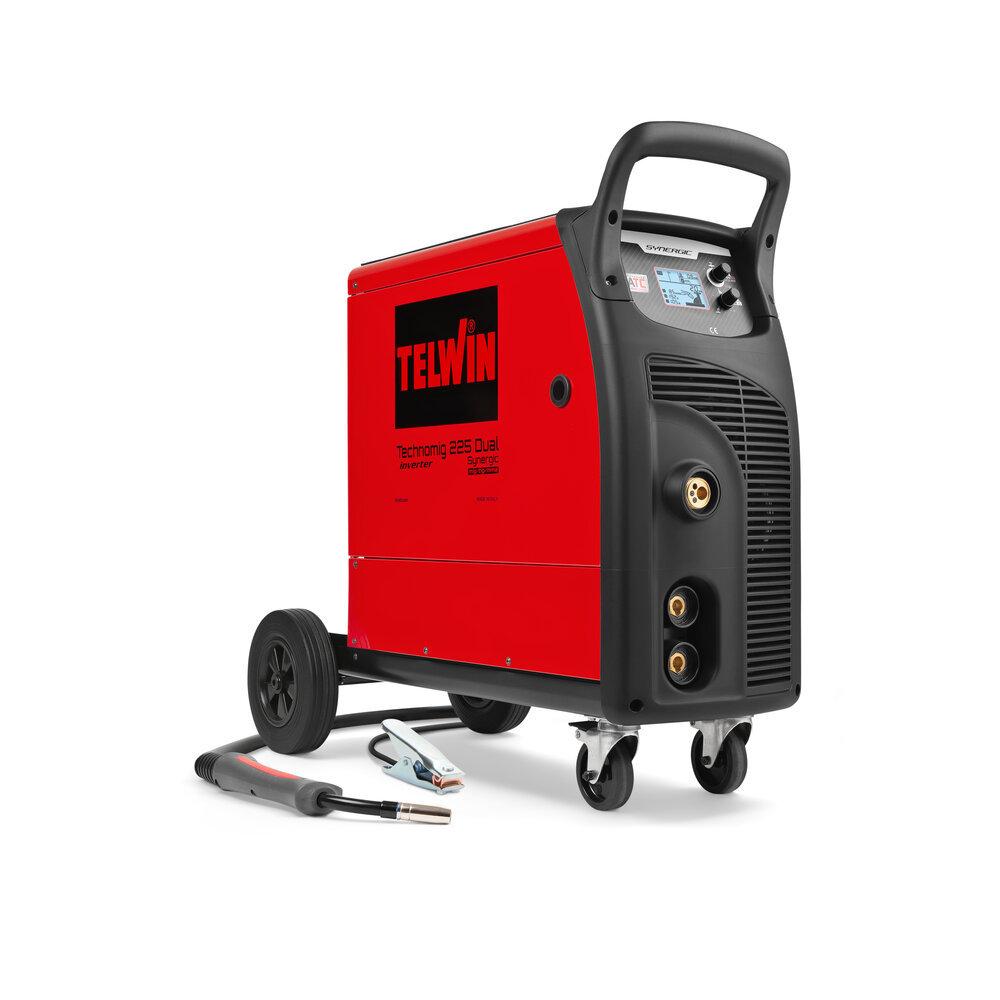

TECHNOMIG 225 DUAL SYNERGIC is a multiprocess inverter welding machine suitable
for MIG-MAG/BRAZING/FLUX/TIG DC-Lift/MMA welding. Designed for professional results
on various materials—steel, stainless steel, aluminum, and galvanized steel—it integrates
advanced SYNERGIC technology for automatic parameter setup, making it ideal for both experts
and beginners. With dual voltage input (230V and 115V), it ensures flexibility in workshop and field
environments. The ONE TOUCH LCD SYNERGY system simplifies use by adjusting welding
parameters with a single touch. Features include adjustable arc length, advanced LCD interface,
25 synergic programs, and compatibility with spool gun for aluminum welding.
Suitable for automotive, maintenance, installation, and light industrial applications.
- Country of Origin: Italy
- Multiprocess inverter: MIG-MAG, FLUX, BRAZING, TIG DC-Lift, MMA.
- Dual voltage: 230V and 115V.
- ONE TOUCH LCD SYNERGY control.
- 25 synergic programs for multiple materials.
- Adjustable arc length and inductance.
- Digital interface with intuitive display.
- Compatible with spool gun for aluminum.
- Compact, portable, and robust design.
- Suitable for automotive repair, maintenance, installation, and light industry.
| Name | - |
|---|---|
| MAIN VOLTAGE | 230V (PHASA) |
| MAIN FREQUENCY | 50/60HZ |
| MAX NO_LOAD VOLTEGE | 52V |
| POWER FACTOR | 0.7 |
| CURRENT CONTROL RANGE (DC) | 20-220A |
| CURRENT | 100A |
| MAX ABSORBED CURRENT | 31A |
| ABSORBED CURRENT 60% | 15A |
| MAX ABSORBED POWER | 5KW |
| ABSORBED POWER at 60% | 2.2KW |
| EFFICIENCY | 84% |
| PROTECTION DEGREE | IP23 |
| DIMENSIONS | 79.5x37.5x73 cm |
| WEIGHT | 29.6 kg |
