Brand: TELWIN
COMPARETELWIN MAXIMA 230 SYNERGIC

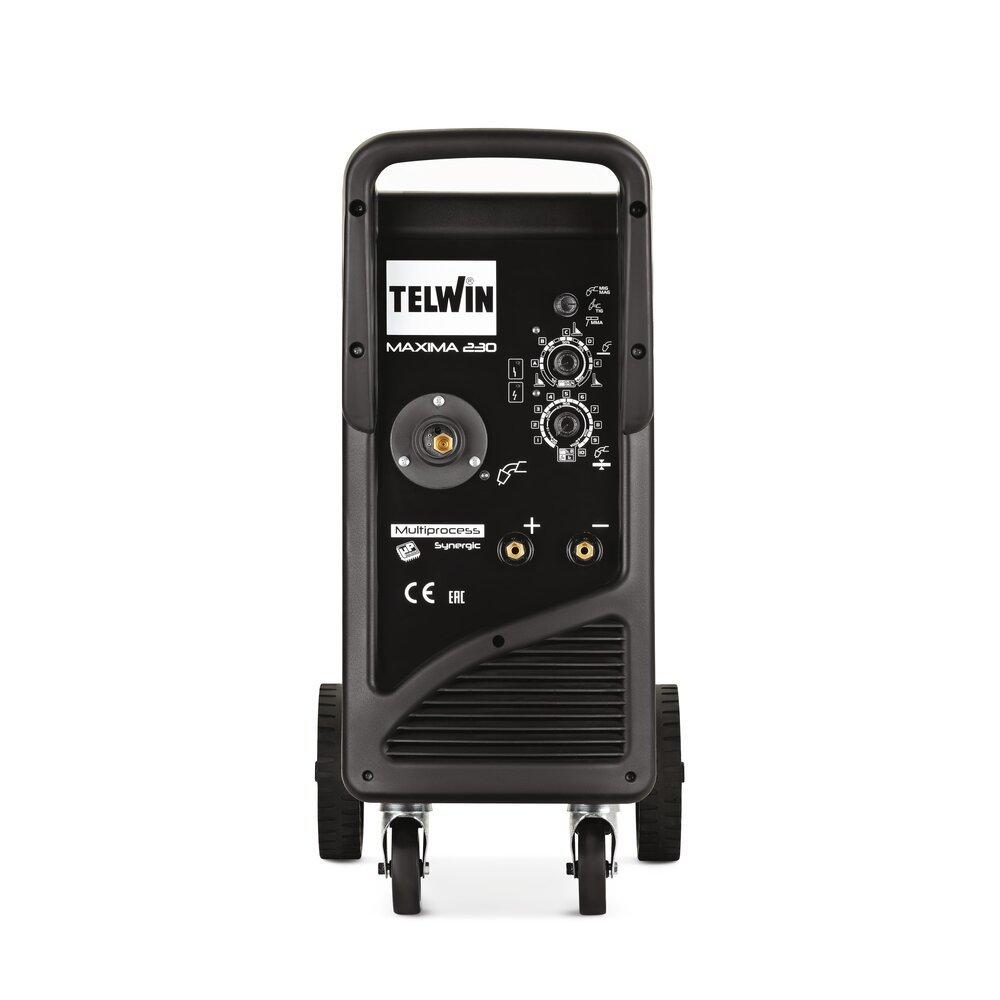

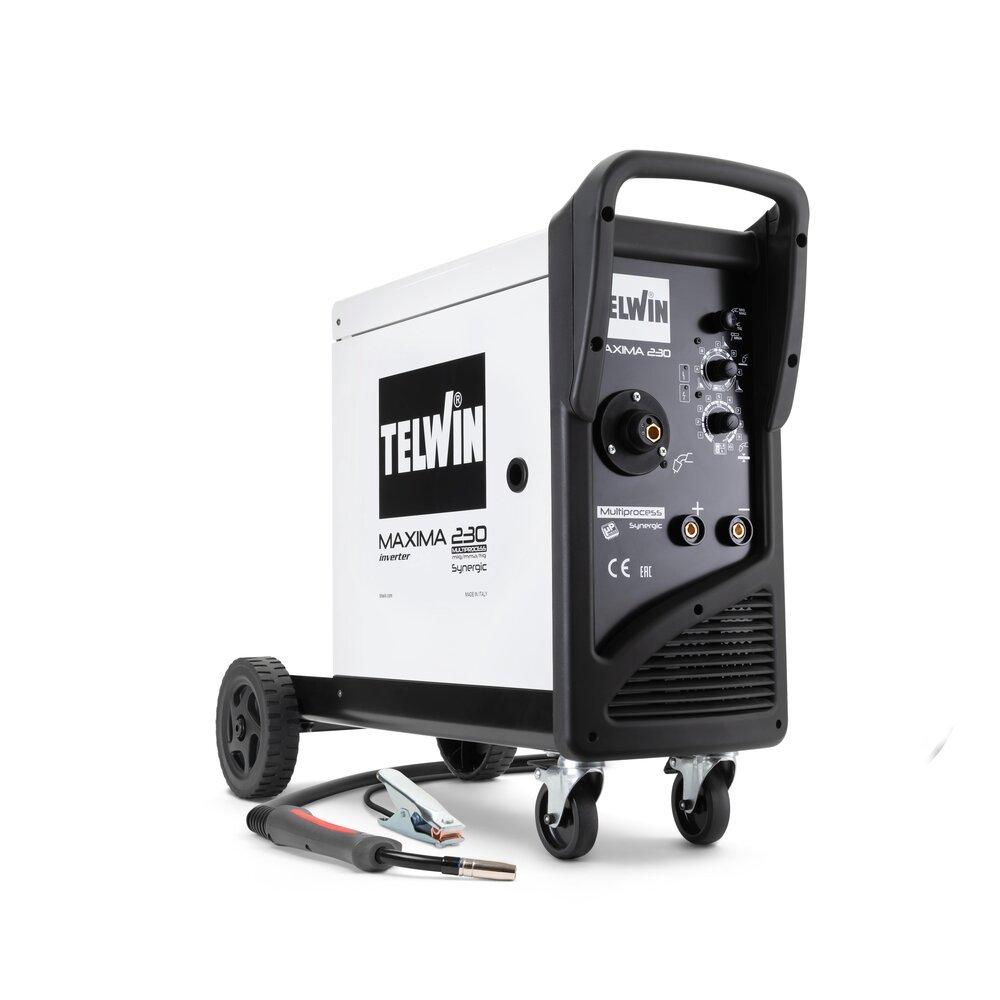

MAXIMA 230 SYNERGIC is a multiprocess inverter welding machine for
MIG-MAG/BRAZING/FLUX/TIG DC-Lift/ MMA welding. Compact, lightweight,
and highly versatile, it’s ideal for a wide variety of materials including steel,
stainless steel, aluminum, and galvanized sheet. Its synergic adjustment feature
allows automatic setting of optimal parameters based on selected material and wire diameter,
simplifying operation even for less experienced users. It features intuitive digital controls,
10 synergic curves, and optional spool gun compatibility for aluminum welding.
It supports gas/no-gas welding with both solid and flux-cored wires. Designed for car body repair,
light fabrication, maintenance, and DIY applications,
it combines professional-level performance with ease of u.
- Country of Origin:Italy
- 5-in-1 welding machine: MIG, MAG, Brazing, TIG DC-Lift, MMA.
- Inverter technology for high efficiency and energy saving.
- Synergic adjustment for automatic parameter tuning.
- Compatible with aluminum welding (spool gun optional).
- Ideal for gas and no-gas welding.
- Digital display and controls.
- Supports solid and flux-cored wires.
- Lightweight and portable.
- Suitable for automotive, repair, and light industry work.
| Name | - |
|---|---|
| MAIN VOLTAGE | 230A (PHASA) |
| MAIN FREQUENCY | 50/60HZ |
| MAX NO_LOAD VOLTEGE | 52V |
| POWER FACTOR | 0.7 |
| CURRENT CONTROL RANGE (DC) | 20-220A |
| CURRENT | 100A |
| MAX ABSORBED CURRENT | 32A |
| ABSORBED CURRENT 60% | 18A |
| MAX ABSORBED POWER | 5KW |
| ABSORBED POWER at 60% | 2.2KW |
| EFFICIENCY | 87% |
| D.USBLE ELECTRODES | 1.6-3.2MM |
| PROTECTION DEGREE | IP23 |
| DIMENSIONS | 82x36x67 cm |
| WEIGHT | 21 kg |
