Brand: HAMMER
COMPAREHydraulic crane, overhead connection, 2 poles, 4 tons
Model: APO-40CAS
Country of Origin: China

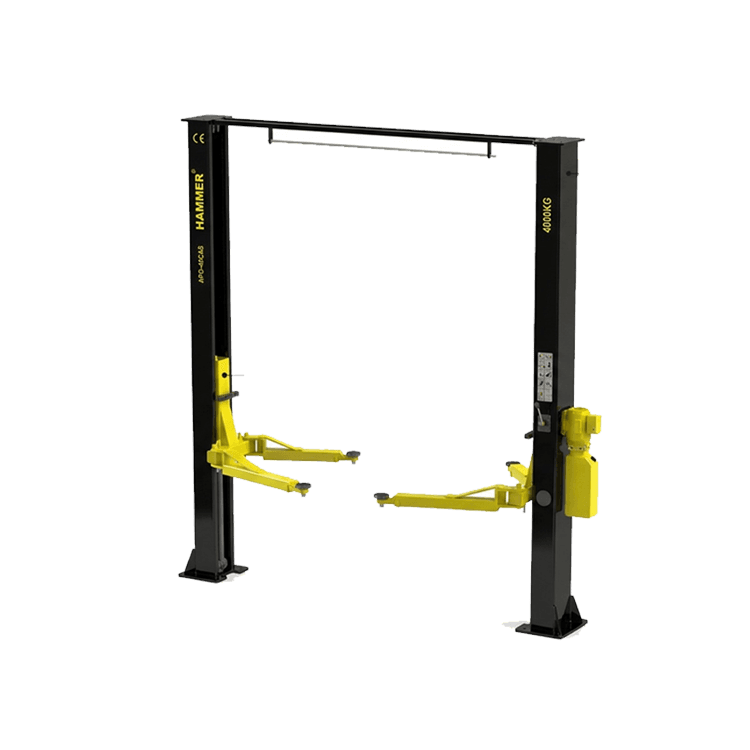

APO-40CAS Two Post Hydraulic Car Lift – 4 Ton Clear Floor Vehicle Lift
The APO-40CAS Two Post Car Lift is a practical lifting solution designed to provide safe and stable vehicle lifting for automotive service centers and maintenance facilities.
This model features a Clear Floor design that offers more working space beneath the vehicle, along with a Single Release system that allows easy unlocking of the safety locks from one side for faster daily operation.
With a lifting capacity of 4000 kg and a heavy-duty durable structure, this two post hydraulic lift delivers reliable performance for continuous use. It is also equipped with asymmetric lifting arms to ensure better weight distribution and easier vehicle positioning.
Powerful 4 Ton Lifting Capacity
Suitable for lifting passenger cars, SUVs, and light-duty vehicles efficiently.
Clear Floor Design
Provides obstacle-free floor space between the columns for easier movement during maintenance work.
Single Release Safety Lock System
One-side release handle for quick and smooth unlocking of safety locks.
Asymmetric Lifting Arms
Ensures balanced lifting and more convenient vehicle loading.
Suitable for Low Clearance Vehicles
Minimum lifting height starts from only 100 mm.
Heavy-Duty Structure with Extra Safety Features
Equipped with overhead limit switch and rubber protection pads for safer lifting operations.
| Name | - |
|---|---|
| Rated Load | 4000 kg |
| Lifting Height | 1930 mm |
| Initial Height | 100 mm |
| Lifting Time | 50 sec |
| Lowering Time | 50 sec |
| Passing Width | 2780 mm |
| Overall Width | 2550 mm |
| Overall Height | 3700 – 3730 mm |
| Motor Power | 2.2 kW |
| Motor Voltage | 220V / 380V |
