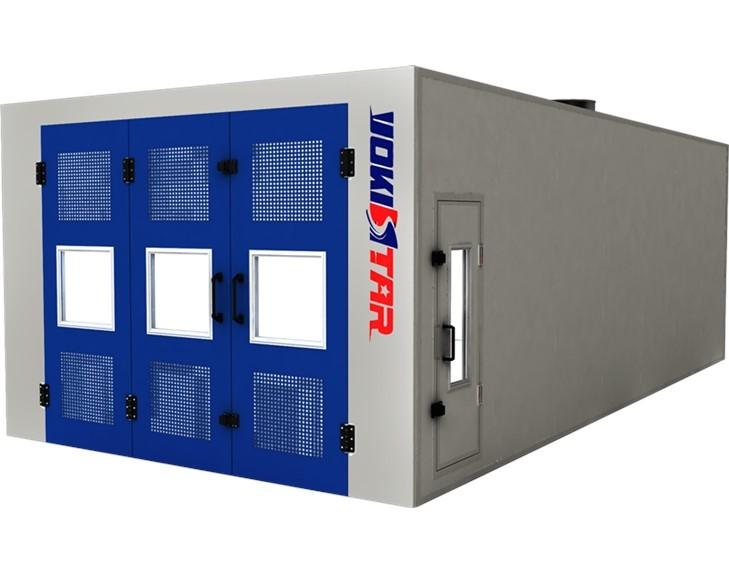

The HUMMER YS-PB2 Spray Booth is designed to deliver stable and reliable performance for wood and furniture painting applications. Thanks to its high-quality components, the booth offers enhanced efficiency and a longer service life, making it an ideal solution for professional woodworking and furniture finishing workshops.
The booth features a high-efficiency top and side lighting system that provides balanced illumination without shadows during the painting process, in addition to powerful air turbines that ensure an optimal working environment and professional results.
Model: YS-PB1-S / YS-PB2
Country of Origin: China
1. Dimensions & Structure
Internal Dimensions:
8,080 × 3,940 × 2,700 mmExternal Dimensions:
8,180 × 4,040 × 2,750 mm (L × W × H)Main Door:
3 units, 3,000 × 2,600 mm (W × H)Service Door:
700 × 2,000 mm, equipped with a square glass window inside an aluminum alloy metal frameWalls & Insulation:
Panels with 50 mm thickness and 1,000 mm width, insulated with EPS thermal insulation, and covered with 0.326 mm colored steel sheets using an interlocking system for durability and heat resistance
2. Professional Lighting System (Lighting System)
Top Lighting:
Top lighting on both right and left sides, 5 units per side, each unit equipped with 4 × 36 W fluorescent lamps for uniform, shadow-free illuminationSide Lighting:
Side lighting on both right and left sides, 3 units per side, each unit equipped with 4 × 36 W fluorescent lamps to enhance visibility during painting
3. Technical Specifications & Control Systems
A. Air Preparation Unit
Fresh air enters naturally through ceiling filters
8 ceiling filters, G3 Grade (EN 779), type C16-300, ensuring clean airflow during operation
B. Air Exhaust Unit
2 exhaust turbines, each turbine consisting of:
2 motors, each rated at 2.2 kW
Total motor power: 4.4 kW
Fan airflow capacity: 26,000 m³/h
Equipped with fiberglass filter, model PA-50, G3 Grade (EN 779)
C. Control System
Main power switch
Fan operation switch
4. Application
This spray booth is specifically designed for wood and furniture painting, providing a clean, well-lit, and efficiently ventilated environment to achieve high-quality finishing results.
| Name | - |
|---|---|
| INTERNAL DIMENSIONS | 8080 × 3940 × 2700 mm |
| EXTERNAL DIMENSIONS | 8180 × 4040 × 2750 mm (L × W × H) |
| MAIN DOOR | 3 units, each 3000 × 2600 mm (W × H) |
| SERVICE DOOR | 700 × 2000 mm, equipped with a square glass window in an aluminum alloy frame |
| WALLS | Panels: 50 mm thickness, 1000 mm width Thermal insulation: EPS (Expanded Polystyrene) Covered with pre-painted steel sheet, 0.326 mm thickness Assembled with an interlocking system |
