Brand: HAMMER

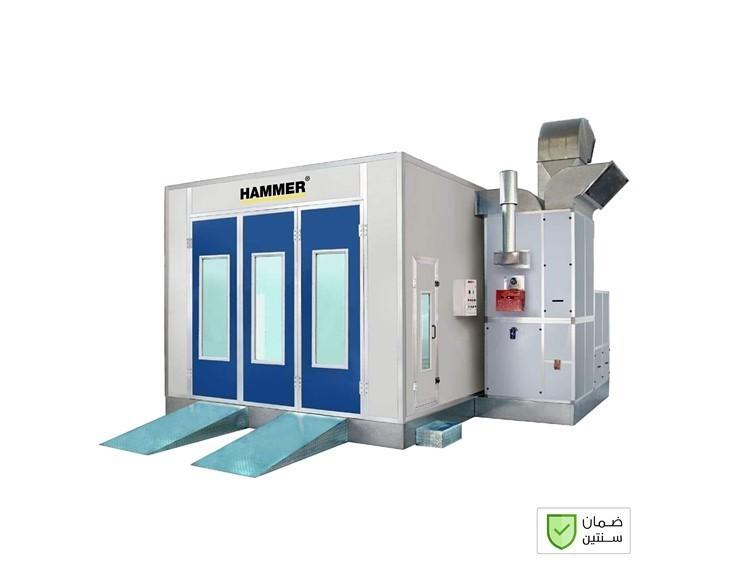

COMPAREGL-100 passenger car paint booth
Suitable for: Passenger cars, minibuses, and light trucks, ensuring powerful and efficient painting performance.
High-Quality Components: Enhance cabin efficiency while saving energy, time, and cost.
Stable & Optimal Operation: Guarantees consistent and ideal performance for automotive painting processes.
Lighting System: Overhead and side lighting system providing high-efficiency illumination.
Control Unit: High-quality, user-friendly control panel for managing temperature, lighting, and emergency stop functions.
High-Efficiency Heat Exchanger: Reuses hot air within the cabin, significantly reducing burner consumption and helping to reach the
required temperature faster.
- Country of Origin: China
- Floor Components
Height: 300 mm
2 rows of galvanized surface grilles and 3 rows of embossed galvanized steel
2 ramps (520 × 2000 mm)
- Dimensions
Internal dimensions: 6900 × 3900 × 2700 mm (L × W × H)
External dimensions: 7000 × 5300 × 3500 mm (L × W × H)
- Main Entrance
Dimensions: 3000 × 2700 mm (3 units)
Made of formed steel, equipped with an edge cover, with tempered glass window inside a circular metal frame
- Service Door
Dimensions: 750 × 2000 mm (1 unit)
Equipped with a tempered glass window inside a circular metal frame
- Walls
Panel thickness: 50 mm
Panel width: 1000 mm
Insulation type: Rockwool thermal insulation
Covered on both sides with 0.426 mm thick colored steel sheets, interlocked by tongue-and-groove system
- Ceiling
Panel thickness: 50 mm
Panel width: 1000 mm
Insulation type: Rockwool thermal insulation
Covered on both sides with 0.7 mm thick colored steel sheets, interlocked by tongue-and-groove system
- Overhead Lighting
10 units total
5 on the left side, 5 on the right side
Each unit consists of 4 LED lamps, 18W each
- Side Lighting
10 units total
5 on the left side, 5 on the right side
Each unit consists of 2 LED lamps, 18W each
- Ceiling Filter
Housed in an oil-coated treated frame
High-quality filter
- Floor Filter
Made of fiberglass
- Air Preparation Unit
2 turbines
2 motors, each 3 kW (total power: 6 kW)
Fan capacity: 20,000 m³/h
Dual-inlet air fan with total air supply capacity
- Air Preparation Control
Controlled by an air-operated gate:
Open during spraying to allow fresh air in
Closed during drying
- Heat Exchanger
Made of stainless steel, thickness 1.5 mm
Equipped with a safety relief opening to prevent explosion
- Burner Type
Italian Riello G20
Diesel-operated
Heating capacity: 150,000 kcal/h
- Exhaust Unit
1 turbine
Motor power: 5.5 kW
Total capacity: 18,000 m³/h
- Chimney
4 sections, each 1000 mm long
- Control Panel
Temperature control
Time control
Drying time control
- Pressure gauge
Drying indicator, spraying indicator, drying fault indicator
Spray switch, drying switch
Right-side lighting switch, left-side lighting switch
- Emergency stop
Main power switch
- Electrical Supply
380 V – 60 Hz
| Name | - |
|---|---|
| Airflow | 2 turbines, 2 motors (3 kW each), total 6 kW, 20,000 m³/h. |
| Burners | Riello G20 (Italy), diesel, 150,000 kcal/h. |
| Control Panel | temperature, time, drying, pressure gauge, spray/dry/fault indicators, emergency stop, and lighting switches |
| FLOOR | Height 300 mm, 2 galvanized grating rows, 3 embossed steel rows, 2 ramps (520×2000 mm) |
| INTERNAL DIMENSIONS | 6900×3900×2700 mm (L×W×H) |
| EXTERNAL DIMENSIONS | 7000×5300×3500 mm (L×W×H) |
| MAIN DOOR | 3000×2700 mm x3 units, with tempered glass window in steel frame |
| SERVICE DOOR | 750×2000 mm, with tempered glass window in steel frame |
| WALLS | 50 mm thick panels with rockwool insulation, 0.426 mm colored steel |
| CEILING | 50 mm thick panels with rockwool insulation, 0.7 mm colored steel. |
| TOP LIGHTING | 10 units (4×18W LED each) |
| SIDE LIGHTING | 10 units (2×18W LED each) |
| ROOF FILTER | high-quality filter with oil paint-treated housing |
| FLOOR FILTER | made of fiberglass |
| CONTROL VIA PNEUMATIC GATE | open for spraying, closed for drying |
| HEAT EXCHANGER | 1.5 mm stainless steel with explosion protection |
| EXHAUST UNIT | 1 turbine, 5.5 kW motor, 18,000 m³/h |
| CHIMNEY | 4 parts, 1000 mm each |
| POWER SUPPLY | 380V |
| FREQUENCY | 60Hz |
