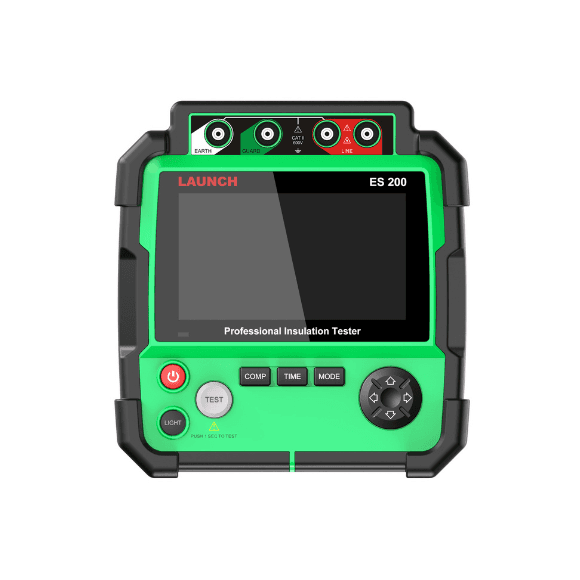

COMPARELAUNCH EV Insulation Resistance Tester ES200
The LAUNCH ES200 is an EV insulation resistance tester—often called a megohmmeter or
high-resistance meter—designed to measure insulation resistance between live components
and exposed non-live metal parts.
It also includes voltage measurement functionality to enhance safety
during maintenance of high-voltage EV systems.
- Country of Origin: China
- ES200 s capable of measuring insulation resistance, and also innovatively increases the voltage measurement function.
- Equipped with standard resistance, in the comparison measurement mode, the measured resistance value is compared with the standard resistance to ensure the measurement accuracy.
- Three measurement modes: timing measurement, comparison measurement, continuous measurement and omnidirectional measurement.
- Overvoltage, undervoltage, overcurrent, output short circuit, reverse connection, overtemperature, etc.
| Name | - |
|---|---|
| Display | 5'' |
| Voltage Range (Charge/Discharge) | 30~600V(50/60Hz) |
| Voltage Accuracy | ±3% |
| Operating Temp. | 0~50℃ |
| Dimensions | 180*174*65.5(mm) |
| Weight | 1.7kg |
| INSULATION RESISTANCE TEST PERFORMANCE PARAMETERS | 500V ( 0.0MΩ～20GΩ) , 1000V ( 0.0MΩ～40GΩ) , 2000V ( 0.0MΩ～100GΩ) , 5000V ( 0.0MΩ～1000GΩ) |
