COMPARELAUNCH EV BATTERY PACK LIFTING PLATFORM

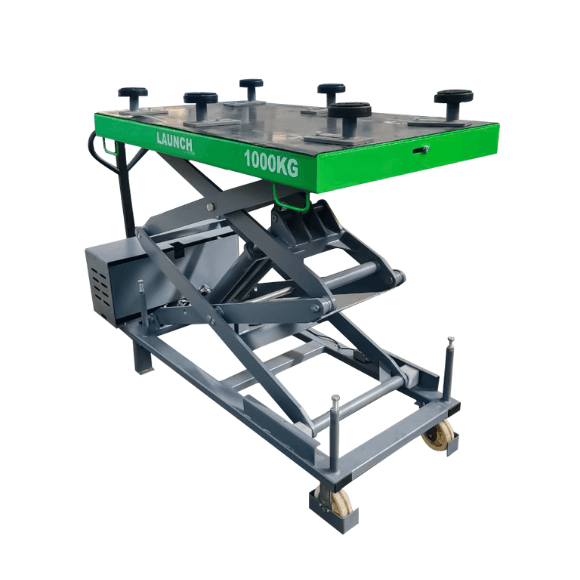

The LAUNCH TLT610 is a compact EV battery pack lifting platform engineered
for installing and removing high-voltage battery packs and other heavy vehicle
components up to 1,000 kg. Its space-saving and mobile design, battery-powered operation,
and mechanical safety lock make it a safe and efficient solution for space-constrained workshops.
- Country of Origin: China
- Applicable to the replacement of EV battery pack and disassembly/installation of different parts below 1.0 tons of vehicles.
- A typical hand pendant box to control its lowering and lifting remotely.
- Powered by battery to minimize the security risk.
- Twin hydraulic cylinders ensures its stability of lowering and lifting.
- European CE certificated Standard JT155-2004 and BS EN 1570-1-2011+A1-2014 covered.
- The maximum and minimum lifting height is 1900mm and 600mm respectively.
- The compact and space-saving design make it easily transported anywhere, and ideal for multi-bay facilities.
- Move easily in any direction with roller casters and hand truck.
| Name | - |
|---|---|
| Supply Voltage | AC 220V 50Hz |
| Operating Voltage | DC 12V |
| Power | 2.2kw |
| Rated Weight | 1000kg |
| Lowest Height | 600mm |
| Highest Height | 1900mm |
| Platform Width | 800mm |
| Platform Length | 2200mm |
| Ascending Time | ≤60s |
| Descending Time | ≤75s |
