Brand: LAUNCH

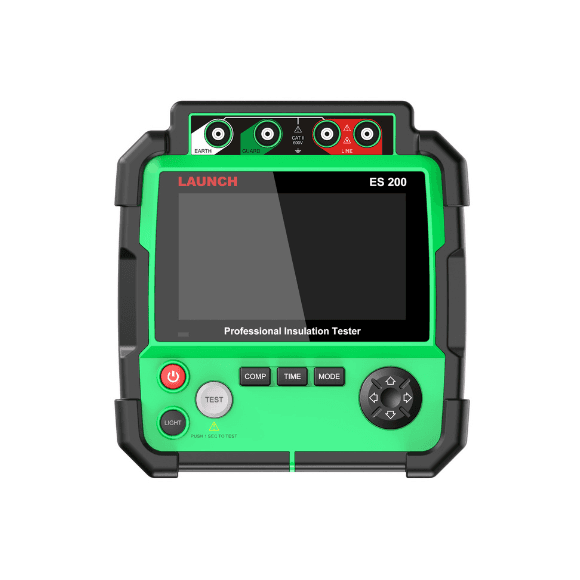

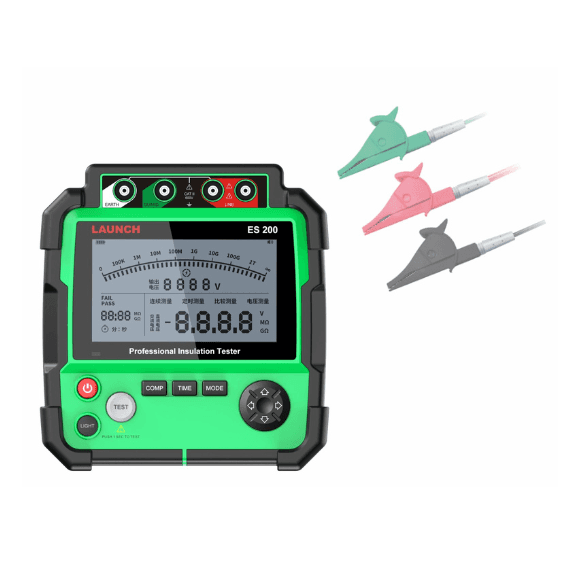

COMPAREES200 EV Insulation Resistance Tester
- Model: ES200
- Country of Origin: Not specified in the available data
The ES200 is a professional EV Insulation Resistance Tester designed to measure insulation resistance between live electrical parts and exposed non-live metal parts. It helps technicians evaluate electrical insulation performance and improve safety during the maintenance and servicing of electric vehicles.
In addition to insulation resistance testing, the ES200 supports both DC and AC voltage measurement, making it a versatile tool for electrical system testing in EV applications. The device provides three measurement modes, including timing measurement, comparison measurement, and continuous measurement.
With a compact and portable design, a 5-inch display, and a 3150mAh battery, the ES200 is suitable for professional EV service centers and field maintenance applications.
Insulation Resistance Testing up to 5000V
The ES200 supports insulation resistance testing at 500V, 1000V, 2000V, and 5000V, providing a wide range of test voltages for high-voltage electrical systems.
Insulation Resistance Measurement up to 1000GΩ
The device can measure insulation resistance up to 1000GΩ at a 5000V test voltage, allowing high-level insulation performance to be accurately evaluated.
AC & DC Voltage Measurement
Supports DC voltage measurement from ±30 to ±600V and AC voltage measurement from 30 to 600V at 50/60Hz.
Three Measurement Modes
The ES200 provides three main measurement modes:
- Timing Measurement
- Comparison Measurement
- Continuous Measurement
Standard Resistance Comparison
The device is equipped with a standard resistance that can be used in comparison measurement mode. The measured resistance is compared with the standard resistance to help ensure measurement accuracy.
Safe Insulation Testing
Designed to measure insulation resistance between live electrical parts and exposed non-live metal parts, helping technicians evaluate insulation safety during EV maintenance.
5-Inch Display
Equipped with a 5-inch display for clear presentation of measurement results and testing information.
Portable Design
With a weight of only 1.7kg and dimensions of 180 × 174 × 65.5mm, the ES200 is easy to carry and transport for field testing and maintenance.
Built-In Battery
Powered by a 3150mAh battery, providing convenient operation during inspection and maintenance tasks.
| Name | - |
|---|---|
| Display | 5'' |
| Input Power | Battery 3150mAh |
| Voltage Accuracy | ±3% |
| Operating Temp. | 0~50°C |
| Dimensions | 180 × 174 × 65.5 mm |
| Weight | 1.7 kg |
| INSULATION RESISTANCE TEST PERFORMANCE PARAMETERS | 500V / 1000V / 2000V / 5000V |
| HIGH VOLTAGE OUTPUT | DC 500V / 1000V / 2000V / 5000V |
| LOW VOLTAGE OUTPUT | ±30~±600V DC / 30~600V AC |
| FRONT PANEL | 5'' Display |
| PROTECTION | Standard Resistance Comparison Measurement |
| DC Voltage | ±30~±600V |
| AC Voltage | 30~600V (50/60Hz) |
| Resistance | 0.0MΩ~20GΩ / 40GΩ / 100GΩ / 1000GΩ |
| Battery Capacity | 3150mAh |
| Sampling Mode | Timing / Comparison / Continuous Measurement |
