Brand: LAUNCH
COMPARELAUNCHX-431 IMMO PAD
- Model: X-431 IMMO PAD
- Country of Origin: China – LAUNCH Tech

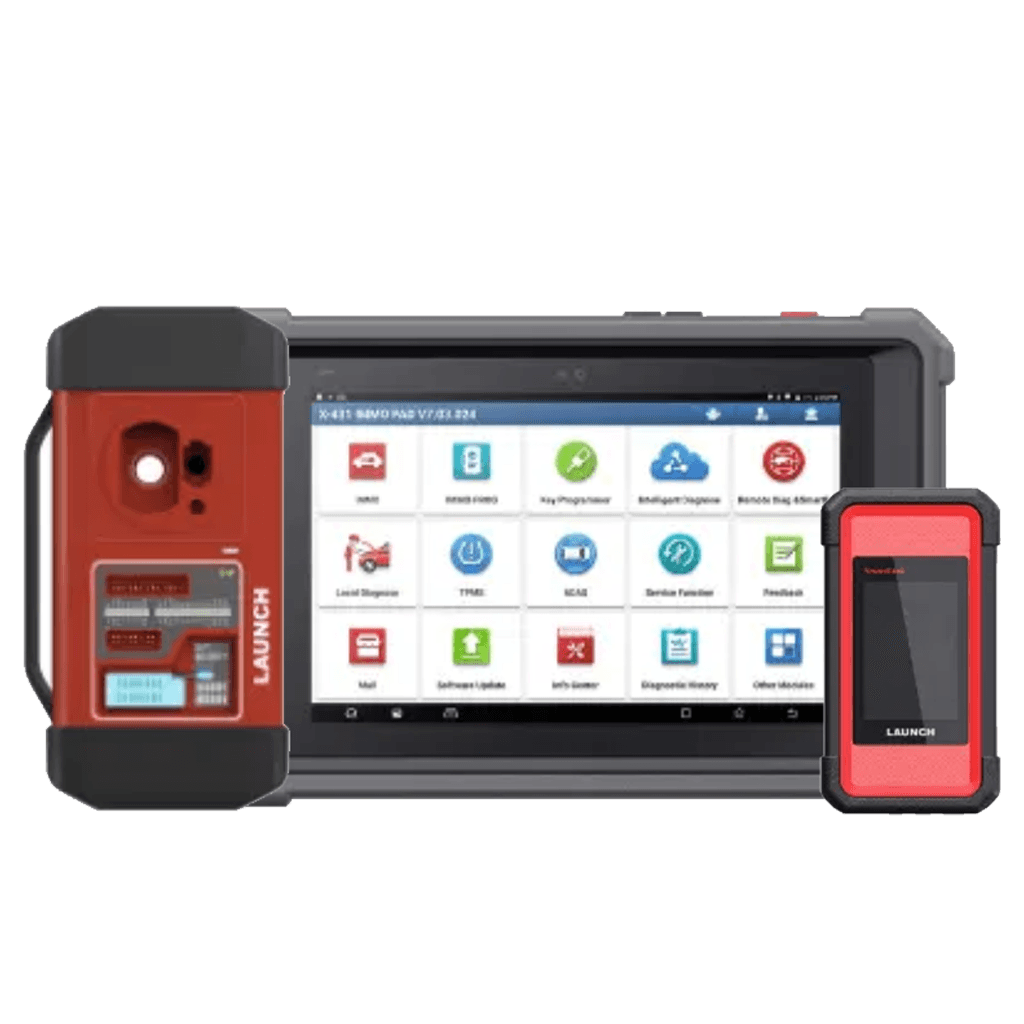

The X-431 IMMO PAD is an advanced automotive diagnostic and immobilizer programming solution designed for high-level electronic vehicle systems. It combines full system diagnostics, online ECU programming, and professional key programming (IMMO) in one powerful Android-based platform.
The device supports more than 170 vehicle brands and thousands of models, covering American, European, and Asian vehicles.
Equipped with the X-PROG 3 advanced key programmer and SmartLink remote diagnosis technology, the X-431 IMMO PAD delivers dealer-level capabilities for key matching, ECU replacement, control unit cloning, and online coding with exceptional accuracy and stability.
Main Diagnostic Capabilities:
- Full system diagnostics for all electronic control units
- Read and clear fault codes (DTCs)
- Live data display with graphical visualization
- Bi-directional control and active tests
- ECU topology mapping for full vehicle architecture overview
- Pre-scan and post-scan diagnostic reports
- Remote diagnosis support via SmartLink
Immobilizer & Key Programming (IMMO):
- Anti-theft password reading
- Key matching, key learning, and key deletion
- Remote control matching
- All keys lost solutions
- IMMO system replacement and re-learning
- Supports over 170 vehicle brands and 2,500+ models for IMMO functions
Online ECU Programming & Coding:
Online ECU programming and coding at OE-level
Supports engine and gearbox ECU programming
Compatible with major brands including:
Mercedes-Benz
BMW
Volkswagen / Audi / Skoda / Seat
Porsche
Land Rover / Jaguar
Nissan, Subaru, Renault
Supports advanced protocols:
CAN FD
DoIP
J2534
D-PDU
X-PROG 3 Advanced Key Programming Module
- Read and write EEPROM and MCU data
- ECU cloning and replacement for over 1,000 ECU models
- Supports more than 1,200 EEPROM types
- Backup and restore data for Bosch and Siemens ECUs
- Mercedes-Benz infrared key programming
- VW / Audi MQB platform and 4th & 5th generation IMMO systems
- BMW ISN reading
Service & Maintenance Functions
Supports more than 39 service functions, including:
- Oil Reset
- Brake Reset
- Battery Registration
- Steering Angle Sensor Calibration
- TPMS Reset
- Injector Coding
- DPF / GPF Regeneration
- EGR Adaptation
- Gearbox Relearn
- Air Suspension Reset
- Sunroof, windows, and seat calibration
- AC system initialization
- Language configuration
- IMMO service
- Start/Stop reset
- Transport mode
- AFS reset
- High-voltage battery diagnostics for EV and hybrid vehicles
Supported Electronic Systems
- Engine and powertrain systems
- Body Control Module (BCM)
- Airbag and safety systems
- Electric Power Steering (EPS)
- Tire Pressure Monitoring System (TPMS)
- Comfort and door control modules
- Trailer control modules
- Additional systems displayed through ECU topology mapping
Expandable Add-on Modules:
- X-PROG 3 – Advanced key and ECU programmer
- VSP-600 – Video inspection camera
- BST360 – Battery tester
- Oscilloscope – Electrical signal analysis
- Sensor Simulator – Sensor simulation module
- Wi-Fi Printer – Diagnostic report printing
- X-431 ADAS – ADAS calibration system
- X-431 TSGUN – TPMS programming tool
- EV Add-on Kit – Electric vehicle support
| Name | - |
|---|---|
| Main Device | - |
| Processor | 2.0GHz, Octa-Core |
| OS | 7.1 |
| Memory | 256MB |
| Storage | 8GB |
| Battery | 9360mAh |
| Display | 3.95“ single-touch screen, 320*480 |
| Camera | Front 8MP, Rear 13MP |
| Protection | IP65 |
| WIFI | 2.4GHz/5GHz |
| Interface | DB26, DB15 |
| Working Temperature | 0~50℃ |
| Dimensions | 200 * 110 * 47mm |
| Smartlink C VCI | - |
| Remote Communication | Local Diagnosis: WIFI/BT/USB SmartLink Remote Diagnosis: WIFI/Ethernet |
| Working Voltage | DC 9V – 36V |
| USB | Type B USB2.0 |
| Power Consumption | <6W |
| Work Temperature | 0~50℃ |
| X-PROG 3 | - |
| Input Voltage | DC12V |
| Input Current | 500mA |
| Storage Temperature | -20~70℃ |
| Vehicle Key Slot | To place car key for RF defection |
| DB26 | Used to connect to each anti-theft cables |
| Infrared slot for Benz key | Used to place the Mercedes-Benz infrared key to perform the key matching function |
| Key IC hole | Used to place the key chip to perform the key matching function |
| Status Indicator | Power supply indicator lamp |
| DIY Slot | Used to connect the anti-theft ECU pin through the cable to read and write data |
| Locker | To tighten loose EEPROM board |
| DC 12V | Used to connect to the DC12 power supply |
| DB15 | To connect with vehicle’s DLC |
| EEPROM Slot | To insert EEPROM board |
