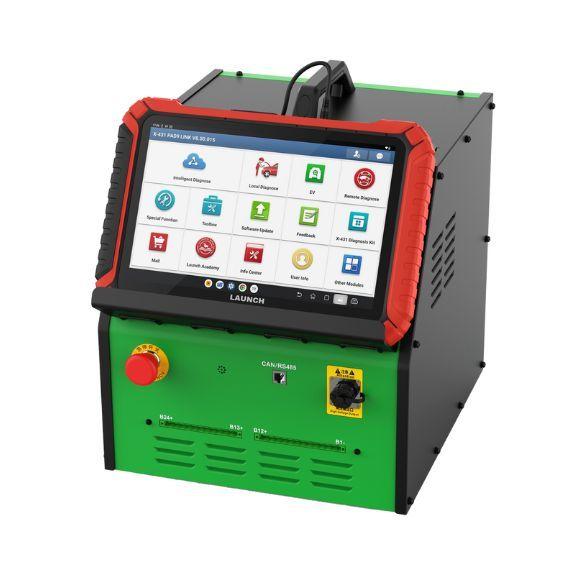

COMPAREEVM324 EV Battery Equalizer & Charge-Discharge Device
- Model : EM101N
- Country of Origin : China
The EVM324 is an all-in-one solution for electric vehicle battery repair and maintenance, combining battery cell equalization with battery pack charging and discharging functions in a single device. When paired with X-431 diagnostic tools, it provides advanced capabilities for EV diagnostics, battery balancing, and testing and maintenance of key electric vehicle components.
The device supports equalization of up to 24 battery cells, with charging current of up to 40A and discharging current of up to 20A, making it suitable for a wide range of electric vehicle battery service and repair applications.
Up to 24 Battery Cells Equalization
Supports equalization of up to 24 battery cells in a single operation to help address voltage differences between cells and improve battery pack performance.
Multiple Battery Type Compatibility
Compatible with multiple battery types, providing greater flexibility for EV battery maintenance applications.
Charging Current up to 40A
Supports a charging current range of 0.5–40A with a maximum charging power of 3.2kW.
Discharging Current up to 20A
Provides a discharging current range of 0.1–20A with a maximum discharging power of 2.4kW.
X-431 Integration
Works with X-431 diagnostic tools to perform EV diagnostics and comprehensive battery inspection.
Wide EV Diagnostic Coverage
Provides diagnostic capabilities covering more than 95% of electric vehicles on the market when paired with an X-431 diagnostic tool.
In-Depth Battery Pack Inspection
Supports advanced inspection and maintenance operations for electric vehicle battery packs.
EV Core Component Testing
Supports testing and maintenance of key electric vehicle components to improve repair efficiency.
Comprehensive Battery Protection
Provides overcharge, over-discharge, and overtemperature protection for battery modules during operation.
Reverse Connection Protection
Supports reverse connection protection to help prevent damage caused by incorrect battery connections.
Overcurrent and Overtemperature Protection
The main device provides protection against overtemperature, overcurrent, and current out-of-control conditions with automatic shutdown.
Precise Charging and Discharging Control
Supports constant-current and constant-voltage charging, as well as constant-current and constant-voltage discharging modes.
Wireless Communication
Supports Wi-Fi and Bluetooth communication for connection with compatible diagnostic systems.
Multitasking Operation
Supports Floating Window Mode, allowing multiple functions to be monitored during maintenance operations.
| Name | - |
|---|---|
| Input Power | AC 100–240V / 50–60Hz |
| Voltage Range (Charge/Discharge) | Battery Module: DC 0–112V / Cell: 1.6–5V |
| Voltage Accuracy | 0.1%FS + 5mV (Max. Range 5V) |
| Current Range | Charging: 0.5–40A / Discharging: 0.1–20A |
| Current Accuracy | 0.5%FS + 0.05A (Max. Range 20A) |
| Channels | Up to 24 Battery Cells |
| Max Power Output | Charging: 3.2kW / Discharging: 2.4kW |
| Battery Interfaces | 12PIN × 1 + 13PIN × 1 |
| Connectivity | Wi-Fi, Bluetooth |
| Cooling | Heat Dissipation Box |
| PROTECTION | Overcharge, Over-discharge, Overtemperature, Reverse Connection, Overcurrent |
| DC Voltage | 0–112V |
| AC Voltage | 100–240V / 50–60Hz Input |
| DC Current | Charging: 0.5–40A / Discharging: 0.1–20A |
