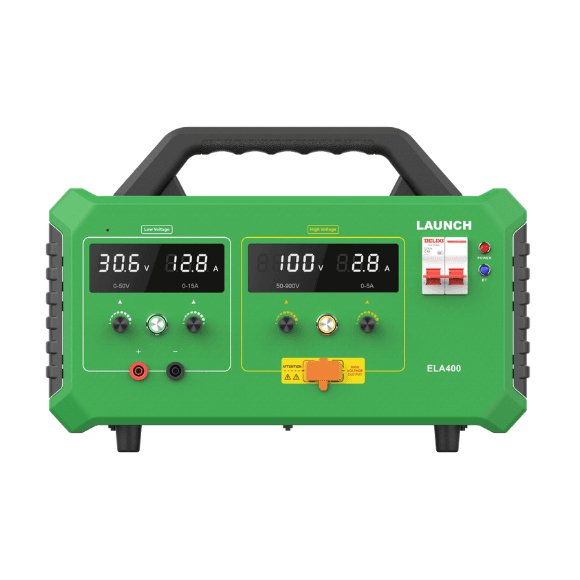

COMPARELAUNCH Intelligent Digital Power Supply ELA400
The LAUNCH ELA400 is an intelligent digital power supply tailored for maintenance of both electric
and fuel-powered vehicles.
It features independent high-voltage and low-voltage modules,
with stable current output and multiple layers of protection,
all controllable via Bluetooth for secure and efficient operation.
Country of Origin: China
- Applicable to all new energy and fuel vehicle maintenance scenarios.
- The high-voltage module and the low-voltage module are independent of each other, with each module providing separate protection during power output without affecting each other.
- Low Voltage Output supports 0V-50V, 0A-15A DC output, adjusting via a knob.
- The input circuit, high-voltage output circuit, and low-voltage output circuit all have independent protection mechanisms, capable of detecting undervoltage, overvoltage, overcurrent, and short circuit faults, and implementing corresponding protective measures.
- High Voltage Output includes current limiting and short circuit protection and supports 50V-900V, 0A-5A DC output, adjusting via a knob.
| Name | - |
|---|---|
| Display | LED Digital Tube |
| Input Power | AC100~240V@20A |
| Connectivity | Bluetooth |
| Operating Temp. | -10~65°C |
| Dimensions | 395*315*265 (mm) |
| Weight | 11Kg |
| HIGH VOLTAGE OUTPUT | Voltage: 50~900V Current: 0~5A |
| LOW VOLTAGE OUTPUT | Voltage: 0~50V Current: 0~15A |
| FRONT PANEL | HIGH VOLTAGE: Voltage adjustment knob, Current adjustment knob, High voltage switch button LOW VOLTAGE: Current adjustment knob, Voltage adjustment knob, Low voltage start/stop button |
| PROTECTION | Current limiting, short circuit protection, undervoltage protection, overvoltage protection, overtemperature protection, etc |
