El-Garage - LAUNCHX-431 ADAS PRO+ V2

COMPARE

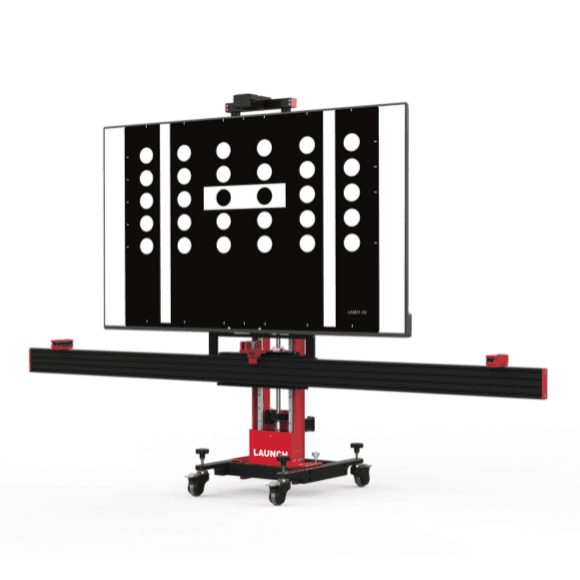

LAUNCHX-431 ADAS PRO+ V2

Multi-directional fine-tuning is supported without moving the calibration tool, including forward/backward, left/right and horizon directions, getting parallelized and centralized within 1 minute.
Electric lifting and manual adjustment for fast and portable operation.
Millimeter precision laser range-finder for accurate measurements. No need for mechanical measurement anymore.
The professional diagnostic software on a LAUNCH scan tool provides step by step instruction to help users quickly perform calibrations correctly.
New upgraded Aluminum Alloy material for durable use.
The OE standard targets are compatible with the X-431 ADAS Mobile PLUS.
Equipped with detachable tablet stand.
Various ADAS calibration systems are supported, including LDW, ACC, RCW, AVM, BSD, NVS, etc
Featuring a 75-inch 4K LCD, the X-431 ADAS PRO PLUS digitizes most front camera targets, eliminating the need for physical setup.
This boosts ADAS calibration efficiency, saves storage space, and reduces maintenance and transport costs.
To be compatible with more ADAS systems, the LCD screen can be removed and replaced with physical targets, enabling it to function as a complete X-431 ADAS PRO PLUS calibration tool.

Name	-
Frame Material	High-strength aluminum alloy
Main Package Dimensions	1025 × 785 × 1400 mm
Total Weight	Approx. 299 kg
Power Supply	110–220 V universal input
Adjustment	Electric lifting + manual multi-directional fine-tuning
Laser Rangefinder	Millimeter-level precision for alignment without manual tools
Tablet Stand	Detachable mount for tablet or scan tool
Supported ADAS Systems	LDW, ACC, RCW, AVM, BSD, NVS, AEB, FCW, LKA, TSR, PPS
Compatibility	Works with OE-standard targets for X-431 ADAS Mobile Plus
