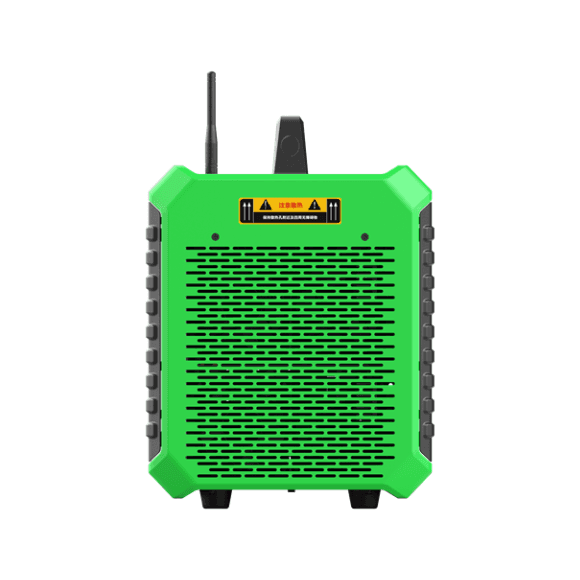

COMPARELAUNCH EV Battery Pack Cell Equalizer ELB300
The Launch ELB300 is a portable, high-voltage cell equalizer designed for
lithium-based EV battery packs (e.g., LFP, NMC, NMA).
It balances individual cell voltages to restore capacity and address range
loss caused by unequal cell performance.
Country of Origin: China
- The 7-inch LCD touch screen and the intuitive menu simplified the operation.
- Portable, easy to carry and transport.
- Applied to all common lithium battery packs testing with various voltage levels.
- Equalizing maintenance test mode can activate the lithium battery performance completely.
- Support intelligent equalizing function, and equalizing maintenance parameter customization.
- Adopt wave width modulation technology, high efficiency, high power factor, low noise, and low electromagnetic interference.
- Support multiple protection design and alarm settings of voltage, current, temperature abnormal to protect the battery and the balancer.
- Support the safety protection functions such as overvoltage, undervoltage, overcurrent, output short circuit, anti-reverse protection and overheating protection.
- Multiple discharge auto-stop conditions make testing mode more intelligent and flexible, and avoid over-charge and over-discharge.
| Name | - |
|---|---|
| Display | 7″ capacitive LCD, 800×480 |
| Input Power | AC 90–264 V, 40–60 Hz |
| Voltage Range (Charge/Discharge) | DC 1.8–4.2 V |
| Voltage Accuracy | ±0.1% FS ± 2 mV (≤ 5 V range) |
| Current Range | 0.1–5 A (max) |
| Current Accuracy | ±0.1% FS ± 0.05 mV (≤ 5 A range) |
| Temp. Accuracy | ±2 °C (–25 to +85 °C) |
| Channels | 24 (2 × 12) |
| Max Power Output | 600 W |
| Battery Interfaces | 16-pin, 24-pin |
| Connectivity | USB device, TCP/IP, Wi-Fi, Bluetooth |
| Cooling | Forced-air |
| Operating Temp. | –5 °C to 40 °C |
| Storage Temp. | –20 °C to 70 °C |
| Humidity | 0–90% (≤ 40 °C) |
| Dimensions | 380 × 275 × 460 mm |
| Weight | 17 kg |
