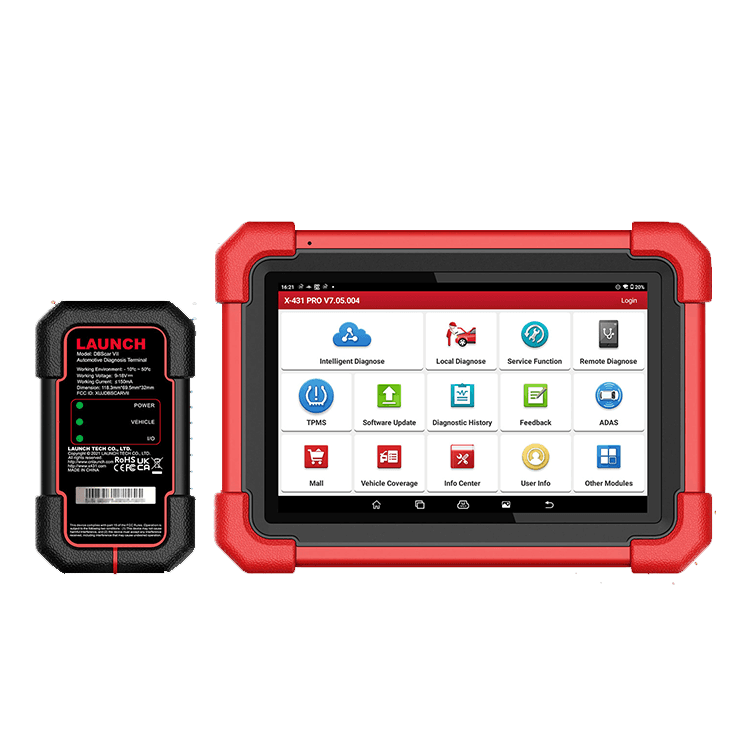

LAUNCHX-431 PRO3 SE

Key Features & Capabilities

• Operating System & Processor: Android 10.0 with a Quad-Core 2.0 GHz processor for fast and smooth diagnostics.

• Memory & Storage: 4GB RAM and 64GB internal storage for handling large datasets and advanced software without lag.

• Display: 10.1-inch touchscreen with 1280×800 resolution, sunlight-readable, protected by Gorilla Glass for durability.

• Battery: High-capacity 6300mAh (47.88 Wh) battery for extended operation.

• Connectivity & Protocols: Supports Wi-Fi dual-band, Bluetooth, USB, and wired connections, covering modern protocols including CAN, CAN FD, and DoIP.

• Diagnostic Functions: DTC reading and clearing, live data streaming, bi-directional control, coding, and matching.

• Guided Functions: Step-by-step instructions for specific vehicle models for precise service execution.

• Remote Diagnosis: Supports remote diagnostics for efficient workflow management.

• Add-on Module Compatibility: Works with VSP-600 (Videoscope), BST360 (Battery Tester), X-431 TSGUN (TPMS programming), and ADAS calibration tools.

Service Functions

The device offers 39 comprehensive service functions, including but not limited to:

1. Oil Maintenance Reset

2. Brake Reset

3. Injector Coding

4. ABS Bleeding

5. Battery Matching

6. Steering Angle Reset

7. Electric Throttle Relearn

8. TPMS & Tire Sensor Reset

9. ADAS Calibration

10. Seat Calibration & Sunroof/Window Programming

Add-on Modules

• VSP-600: Videoscope for inspecting tight spaces in the engine or vehicle components without disassembly.

• BST360: Battery tester for checking battery, charging system, and alternator condition.

• X-431 TSGUN: TPMS programming and sensor diagnostics.

• O2-2 Scopebox: Oscilloscope for advanced electrical signal analysis.

• S2-2 Sensorbox: Sensor performance simulation and testing.

• X-431 Key Programmer: Key programming module.

• Wi-Fi Printer: Instant wireless report printing.

• X-431 ADAS Calibration Tools: Advanced driver-assistance system calibration.

These modules transform the X-431 PRO3 SE into a complete vehicle diagnostic system, capable of handling everything from basic system checks to advanced programming and calibration.
