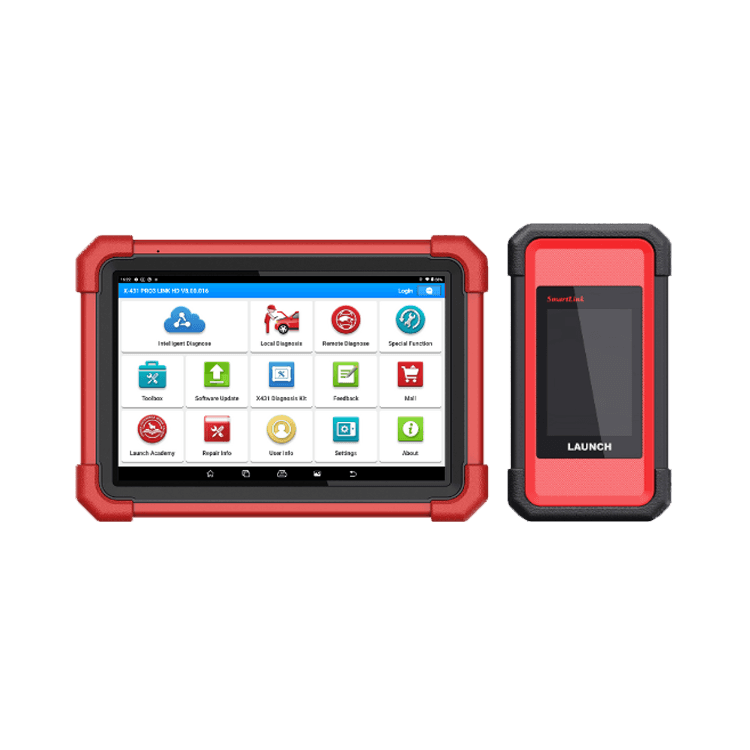

LAUNCHX-431 PRO3 LINK HD

Core Diagnostic Capabilities

• Full-System Diagnosis
  Read and clear Diagnostic Trouble Codes (DTCs), perform system-wide scans, view live data streams, access fault records, and execute advanced bi-directional tests.

• Automatic VIN Identification
  Intelligent vehicle recognition for faster and more accurate diagnostics.

• Remote Diagnosis via SmartLink
  Supports professional remote diagnostics and technical assistance through SmartLink technology.

• OE-Level Diagnostic Access
  Deep access to vehicle systems comparable to original dealer tools.

• X-431 FIX Database
  Built-in repair guidance, wiring diagrams, fault explanations, and technical tips.

• Continuous Software Updates
  Supports over 120 diagnostic programs with regular updates and expansions.

Service & Maintenance Functions (21+ Advanced Functions)

The device supports more than 21 essential service and maintenance functions, including:

• DPF Regeneration

• Injector Coding

• Oil Maintenance Reset

• Speed Limitation Adjustment

• Idle Speed Adjustment

• Brake Reset

• PTO Configuration

• System Language Adjustment

• Service Interval Reset

These functions provide precise control over vehicle systems and significantly enhance maintenance efficiency.

Vehicle Coverage & Compatibility

Supported Vehicle Categories

• Passenger Cars (Light-Duty Vehicles)

• Medium-Duty Vehicles

• Heavy-Duty Trucks & Buses

• Agricultural & Construction Equipment

Supported Brands & Systems (Examples)

• Heavy-Duty Trucks:
  Mercedes-Benz HD, Volvo HD, Scania, MAN HD, Iveco HD, Renault HD, Hino HD, Isuzu HD

• Construction & Agricultural Equipment:
  Caterpillar HD, JCB HD, John Deere, Case, Liebherr, New Holland

• Engines & Systems:
  Cummins, Detroit Diesel, Perkins
  Wabco ABS, Bendix ABS
  Allison and ZF transmissions

• Commercial Vehicles (DS):
  Toyota DS, Nissan DS, Mitsubishi DS, USAFORD DS

• Trailer Systems:
  Trailer HD

Currently supports over 120 diagnostic software programs, with continuous expansion.

SmartLink C V2.0 Communication Unit

• Built-in Display: 3.5-inch screen

• Connectivity Options:

  • Wi-Fi (2.4 GHz & 5 GHz)

  • Bluetooth

  • USB

  • Ethernet

• RAM: 256 MB

• Internal Storage: 8 GB

SmartLink C V2.0 ensures stable, high-speed communication between the vehicle and tablet, supporting multiple protocols and remote diagnostic operations.

Optional Expansion Modules

The system supports a wide range of optional accessories, including:

• VSP-600 Digital Inspection Camera

• BST360 Battery Tester

• X-431 TSGUN TPMS Programming Tool

• O2-2 Scopebox Diagnostic Oscilloscope

• S2-2 Sensorbox Sensor Simulation Module

• Key Programming Modules

• ADAS Calibration Systems

• Wi-Fi Thermal Printer for diagnostic reports
