Brand: LAUNCH
Chat
COMPARE

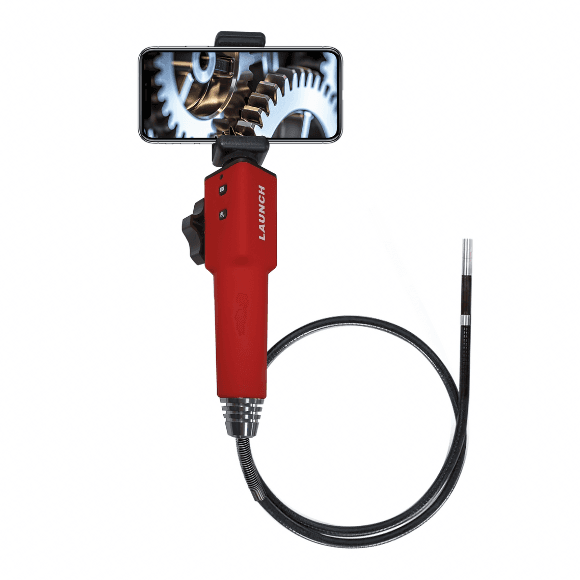

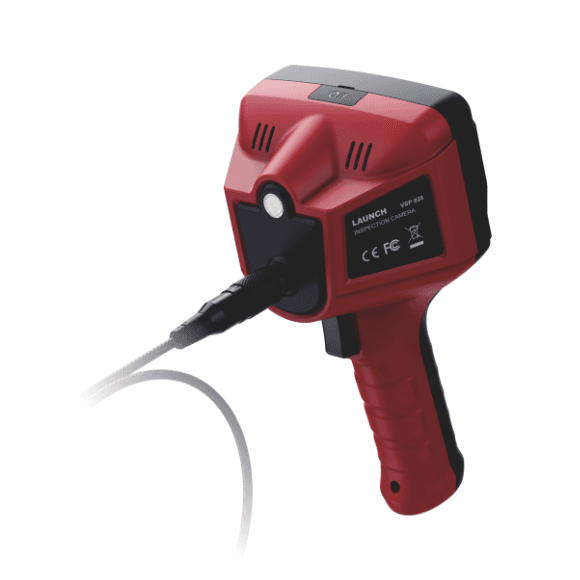

COMPARELAUNCH VSP-828 Portable Videoscope
The Launch VSP-828 is a professional-grade inspection tool,
ideal for accessing narrow, curved spaces—such as evaporation system chambers,
combustion chambers, and catalytic converters. It captures vibrant, clear,
multi-angle videos and images, streaming them via cable to smartphones or computers.
Three lens tube options are available to suit different inspection needs.
Country of Origin: China
- Three lens versions for choice
- 6.2mm Rotating Lens Version(180 degree rotation in two directions)
- 5.5mm Dual-lens Version(Switch between front and side)
- 5.5mm Standard Version(SIngle direction)
- 4GB built-in storage on mainboard.
- Support for external TF cards up to 32GB.
- Picture taking & audio/video recording supported.
- Flashlight assist function.
- 3 times magnification can be achieved.
- 4-gear LED light for adjustment.
- Rotate static image in 4 directions.
- Switch the image between black-and-white and color.
- High temperature alarm function.
| Name | - |
|---|---|
| Lens Image Sensor | 1/9'' CMOS720PHD |
| Lens Frame Rate | 30 |
| Lens Diameter | 5.5mm single lens tube / 5.5mm dual lens tube / 6.2mm rotating lens tube available) |
| Lens Imaging Focal Length | ＞5.5mm |
| Lens Best Imaging Distance | 3-8cm |
| Lens Tube Length | 1m (3m or 5m can be customized) |
| Main Unit Display Screen | TFT display screen |
| Main Unit Display Pixels | 1280*720 |
| Main Unit Power Supply | Built-in 18650 Lithium battery, 3.7V |
| Main Unit TF Card Storage | 32GB(Optional) |
