COMPARETEXA NAVIGATOR TXT MULTIHUB 2

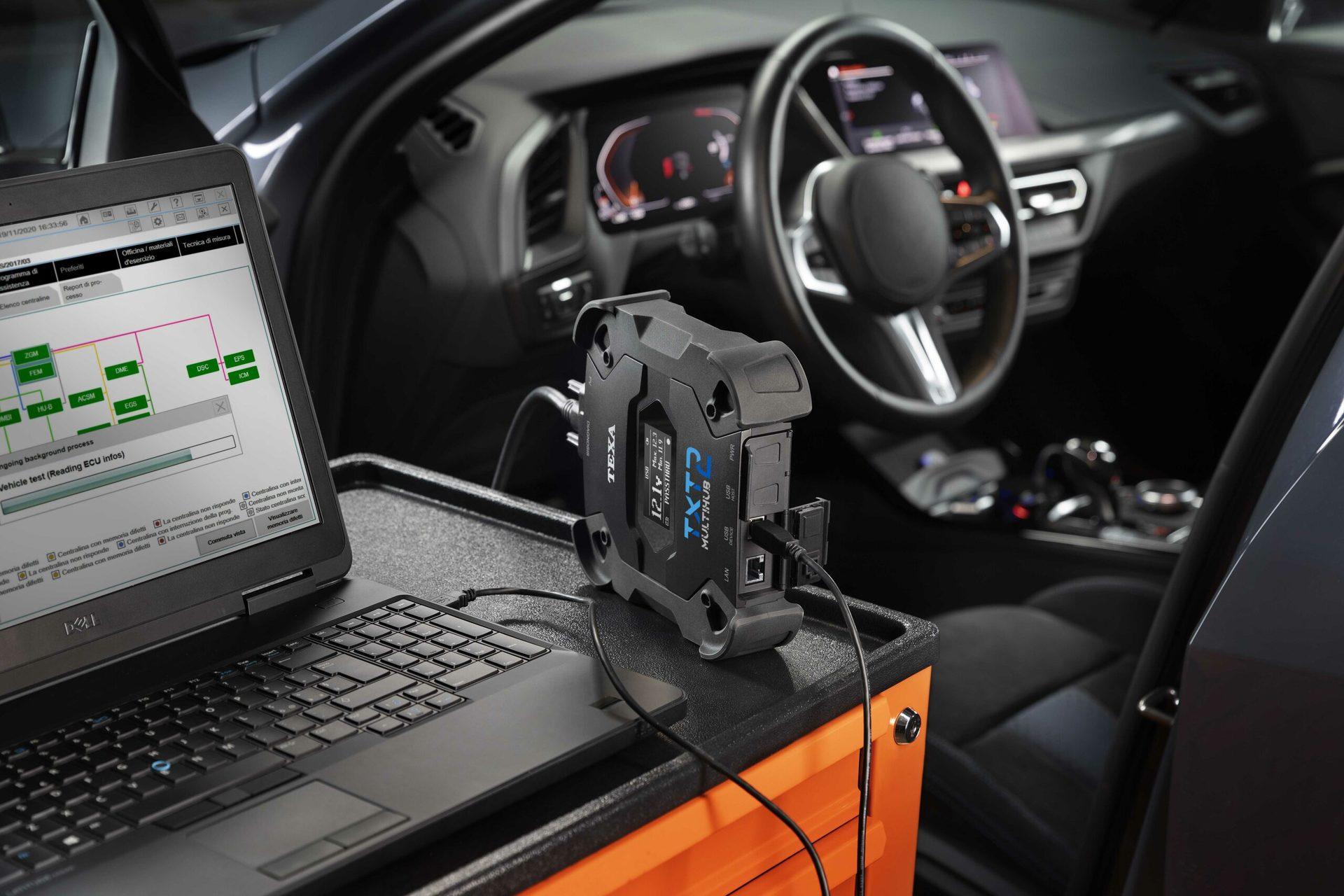

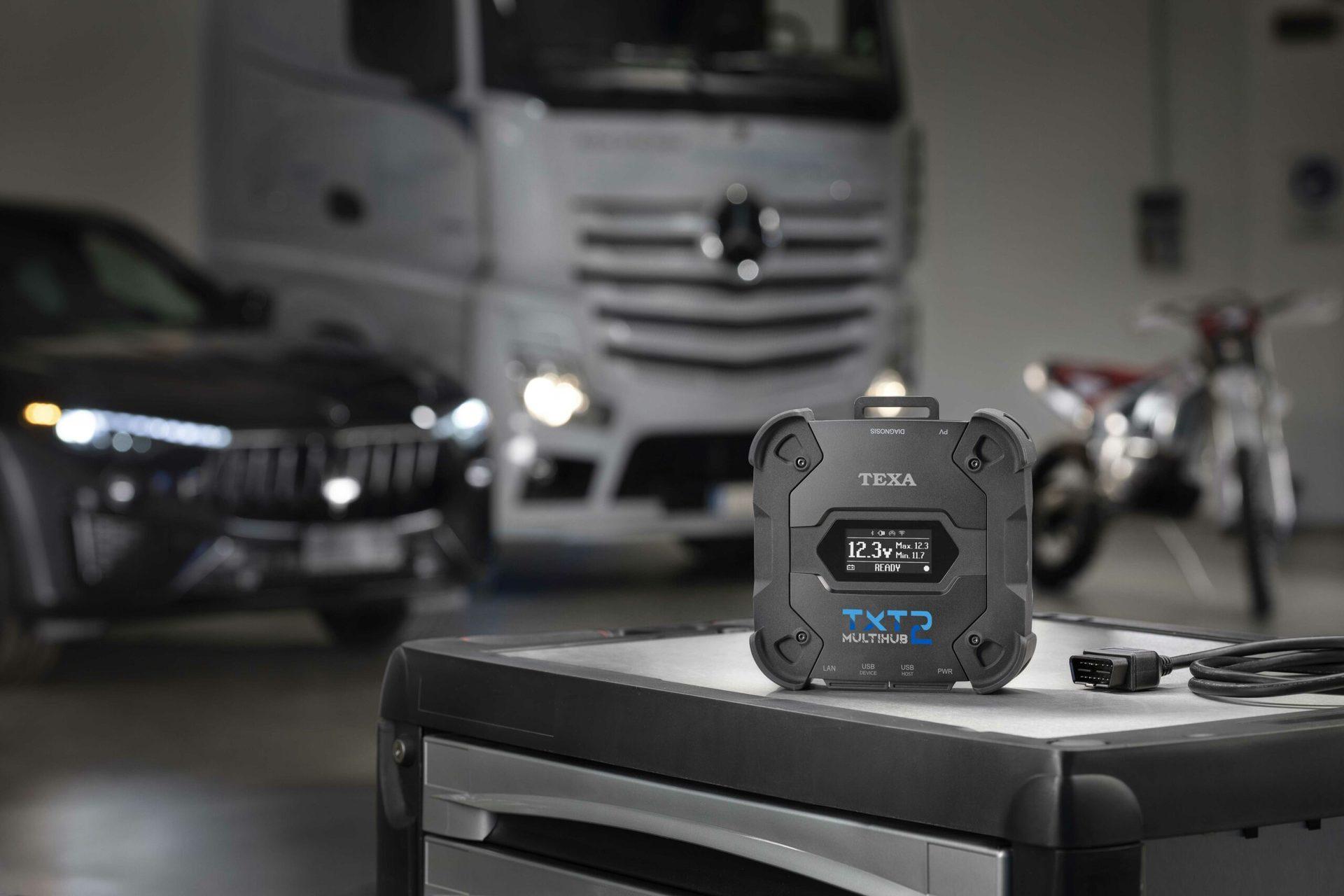

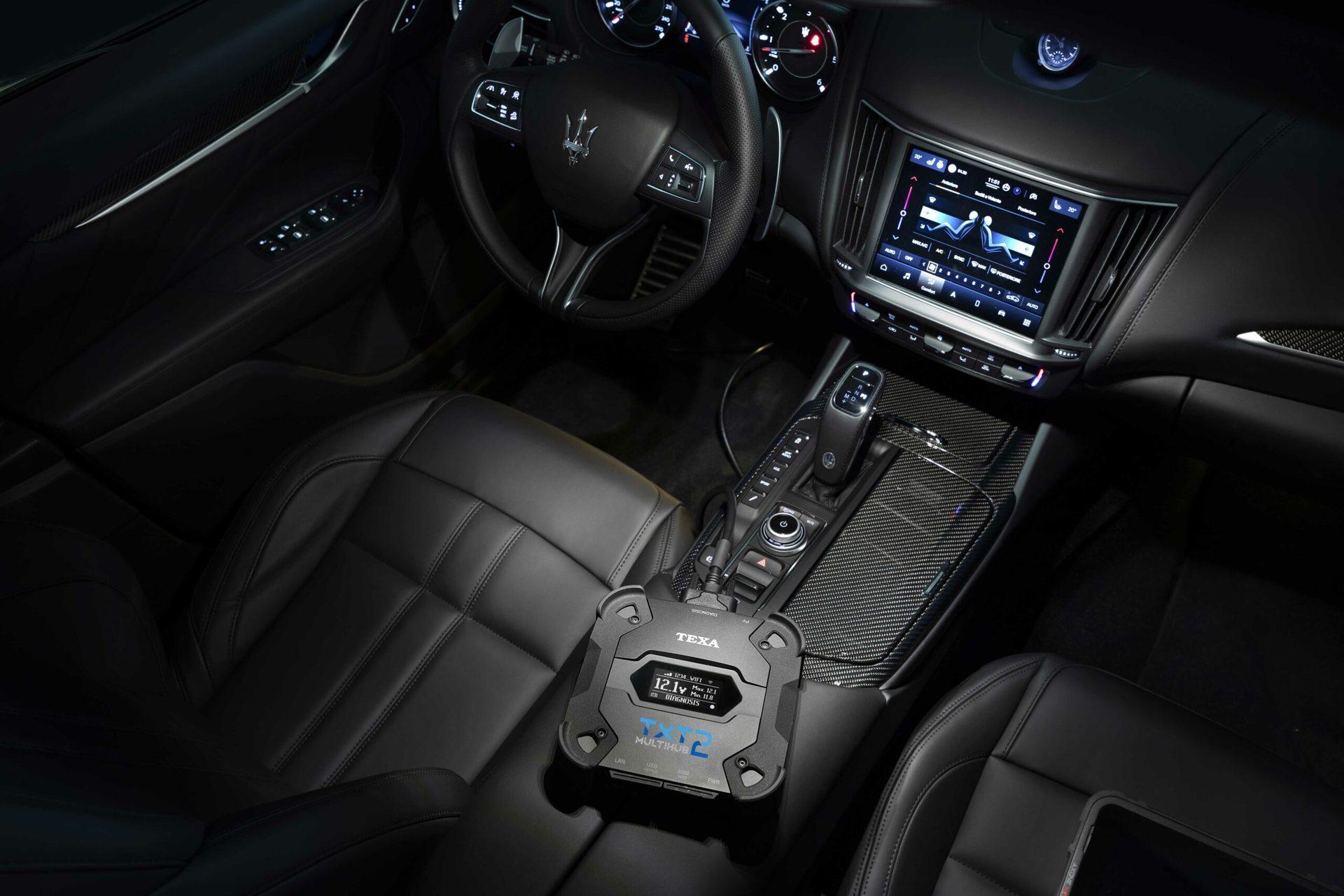

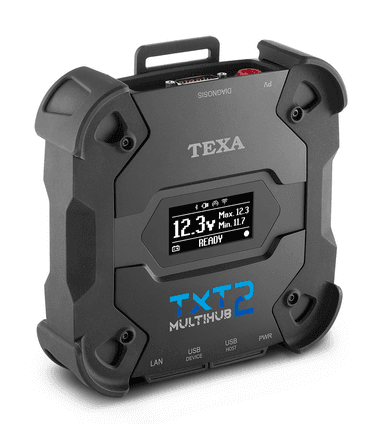

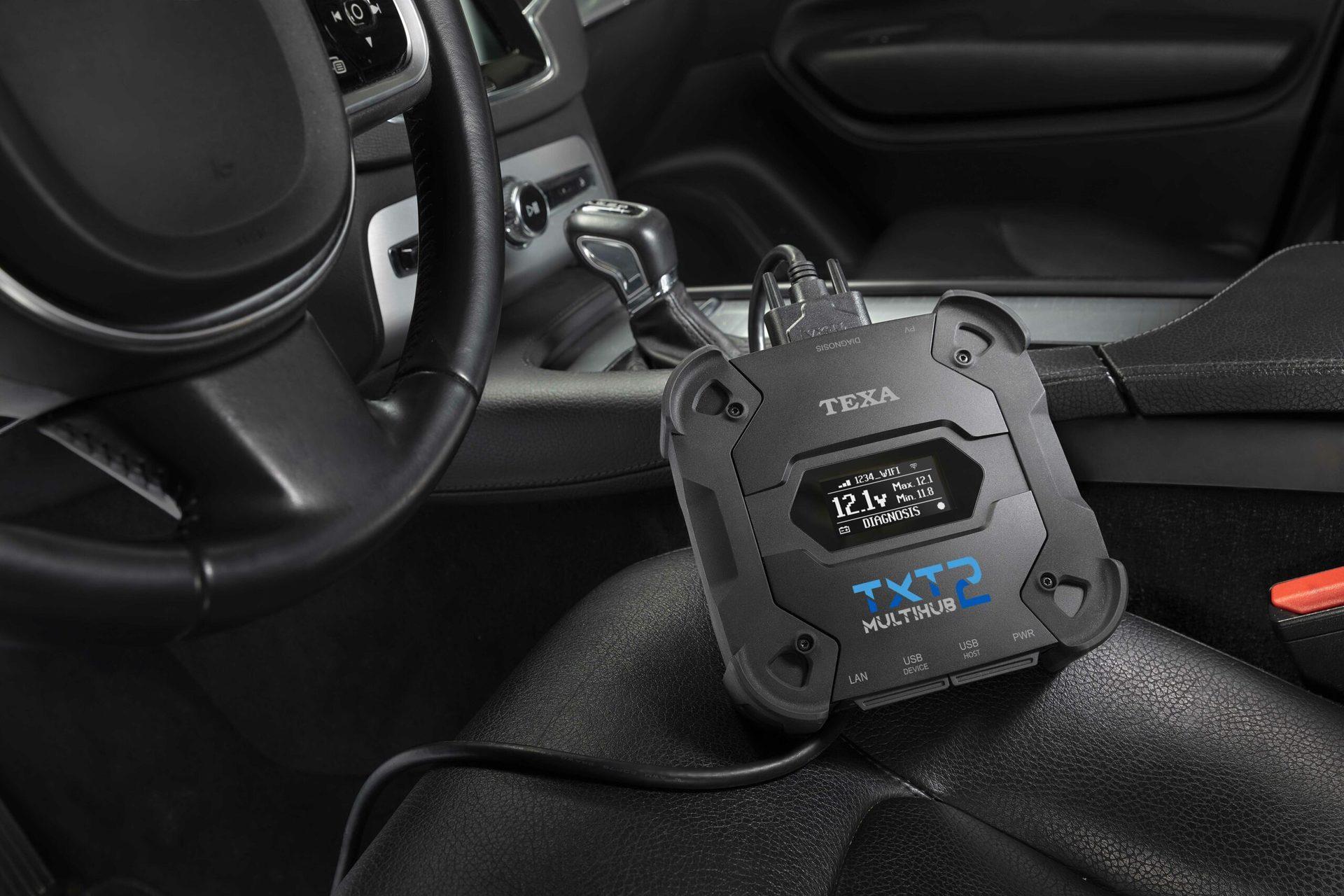

The TEXA Navigator TXT MULTIHUB 2 is a powerful and rugged multi-protocol diagnostic
interface designed for use across all vehicle types—cars, trucks, motorcycles, marine,
and agricultural machinery.
It supports advanced protocols like DoIP, CAN-FD, and Pass-Thru,
with automatic connectivity switching and remote diagnostics, making it ideal for modern,
multi-environment workshops.
- Country of Origin: ITALY

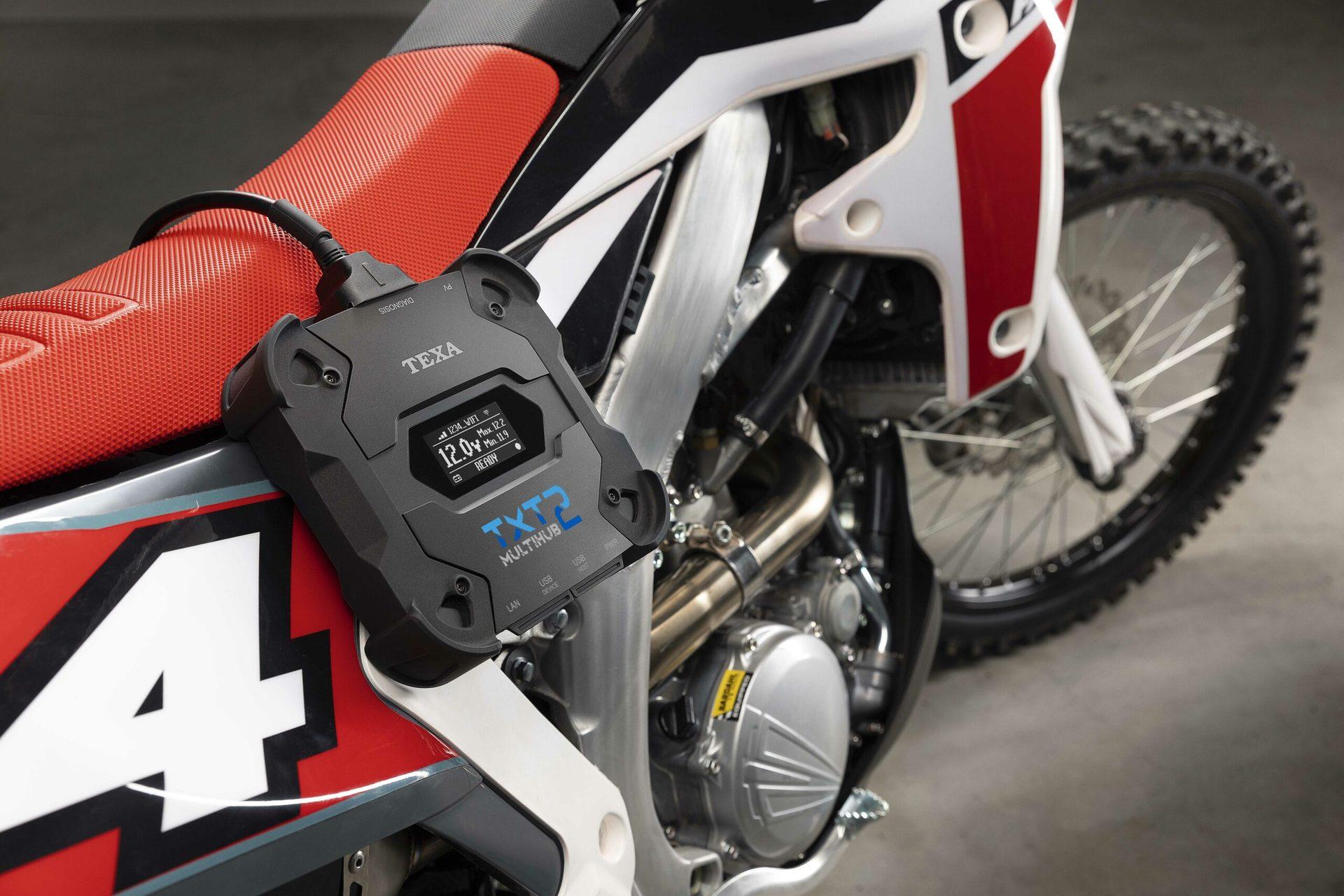

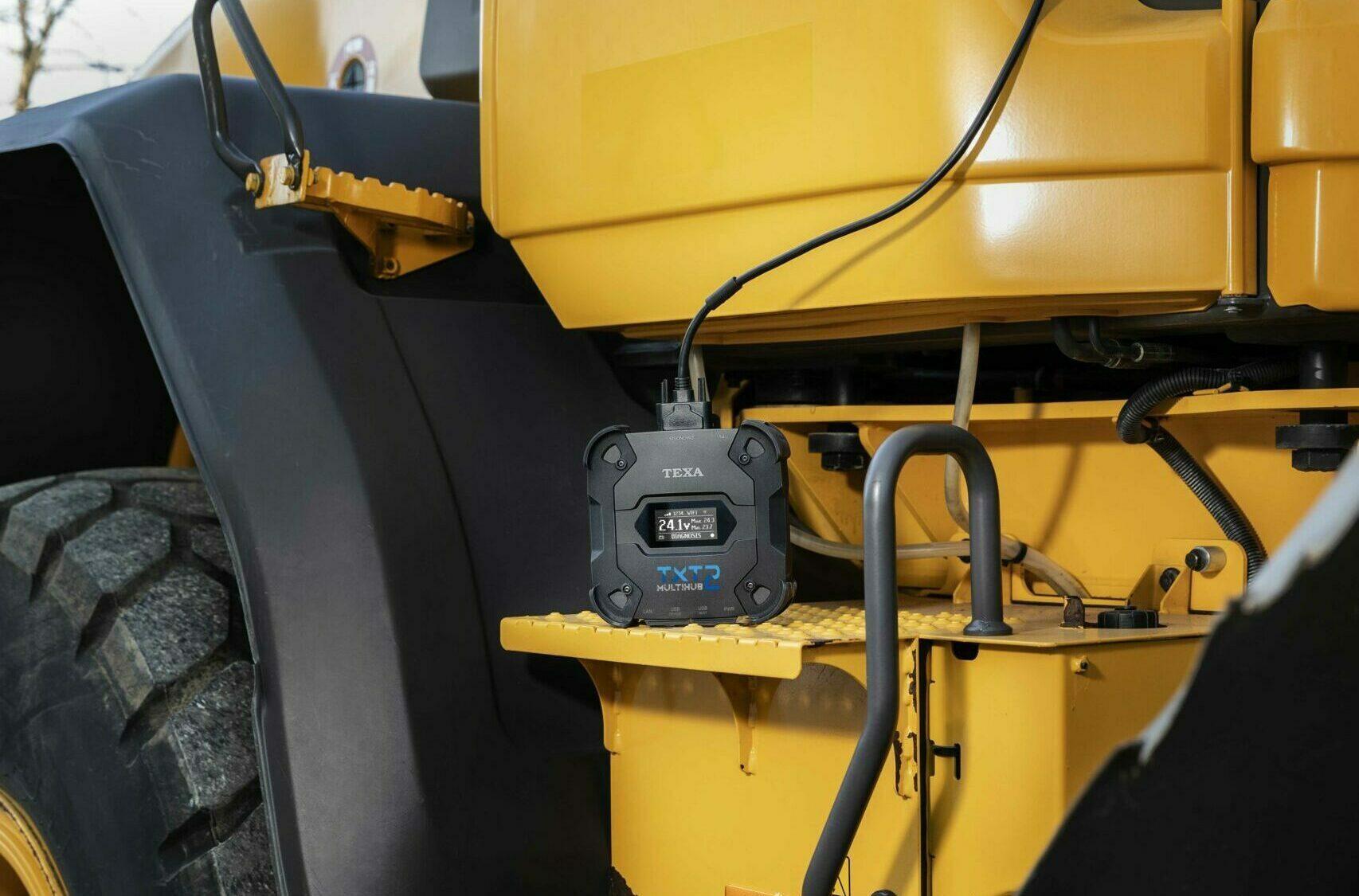

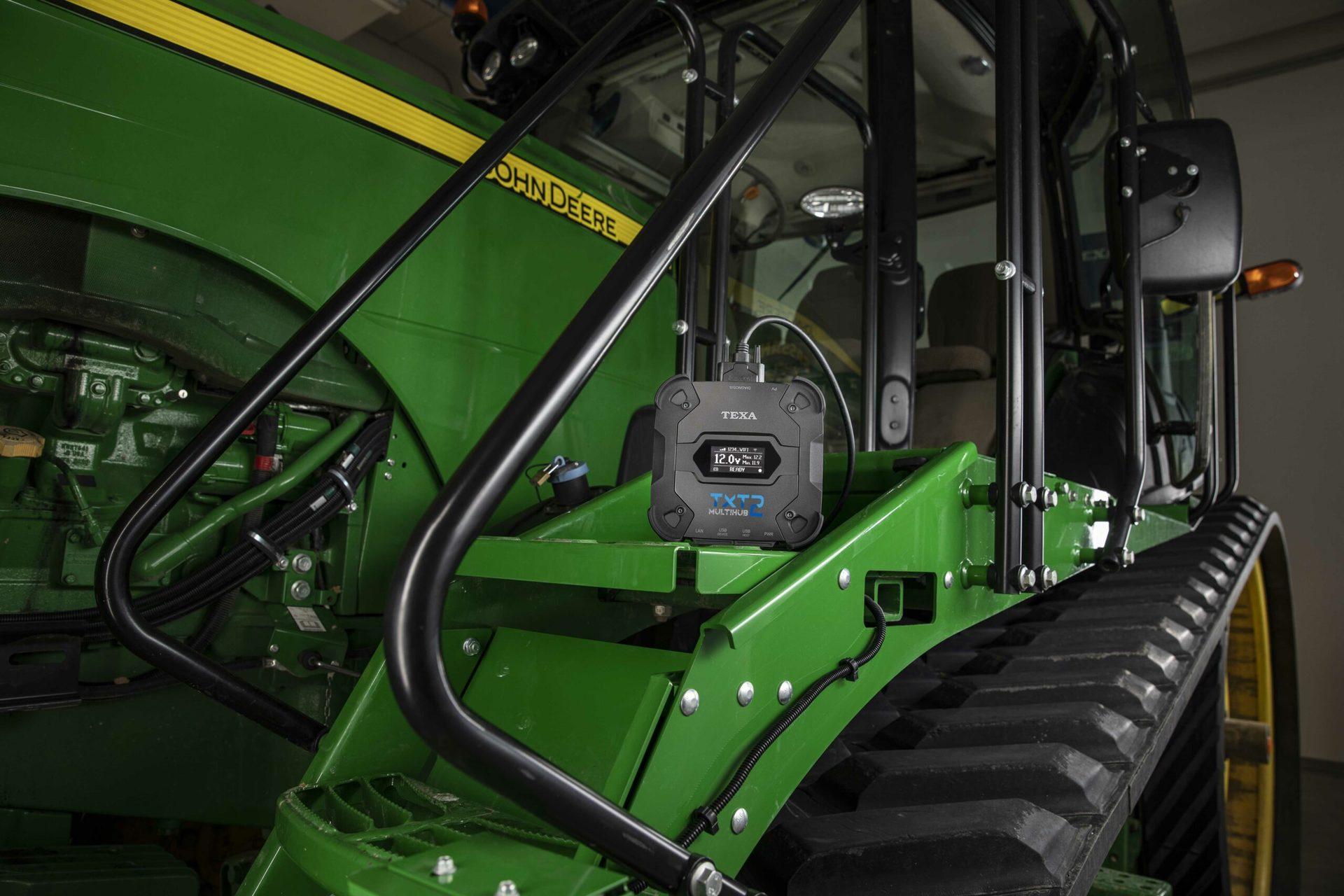

- Universal diagnostic interface for cars, trucks, motorcycles, boats, agricultural and construction vehicles.
- Supports multi-protocol connectivity: CAN, CAN-FD, DoIP, K-Line, SAE J1850, ISO 9141, ISO 22900, RP1210, J2534.
- Automatic switching across connection modes (Wi-Fi, Ethernet, Bluetooth, USB).
- Built-in 2.42″ white-backlit display shows over 40 messages (voltage, mode, protocol).

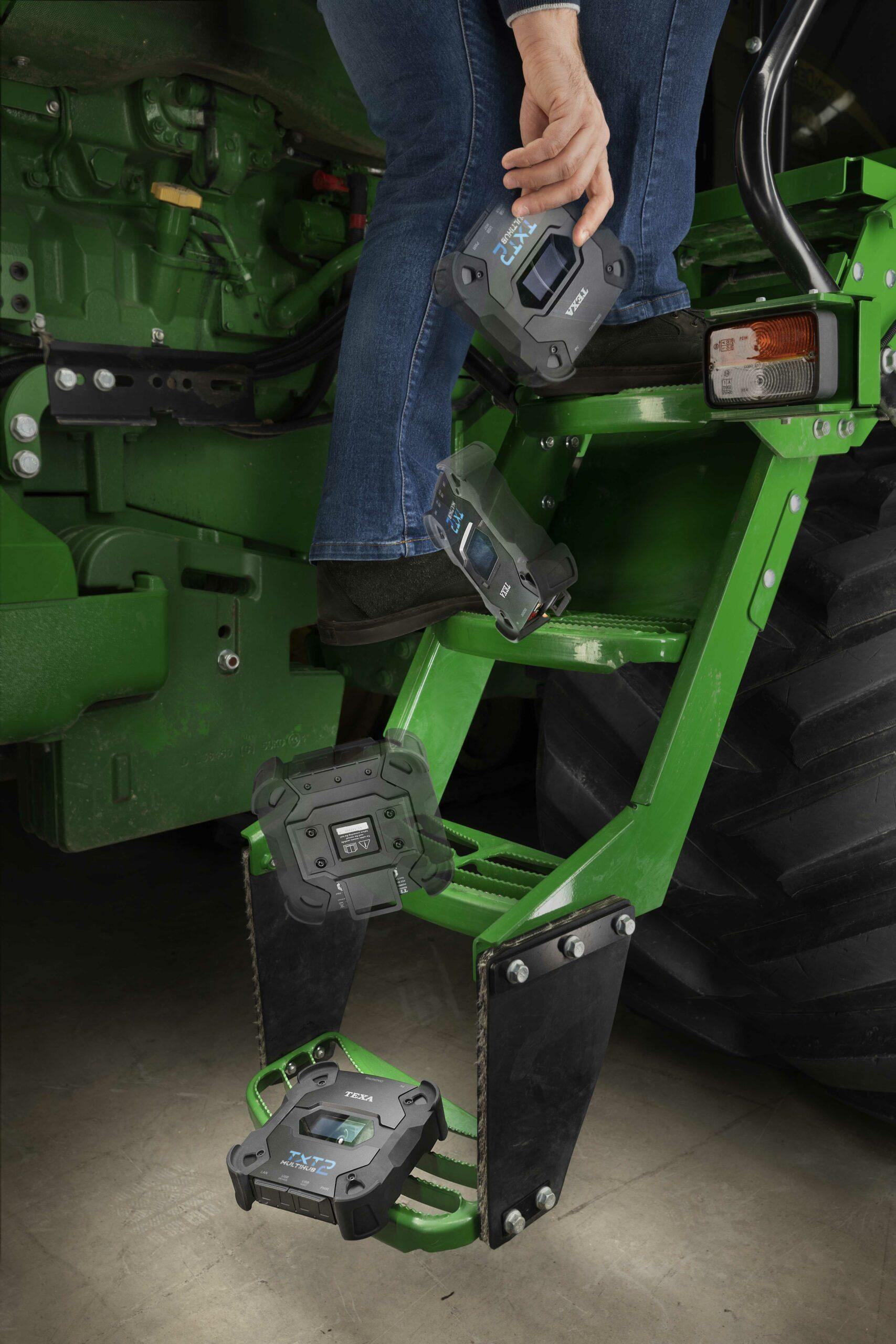

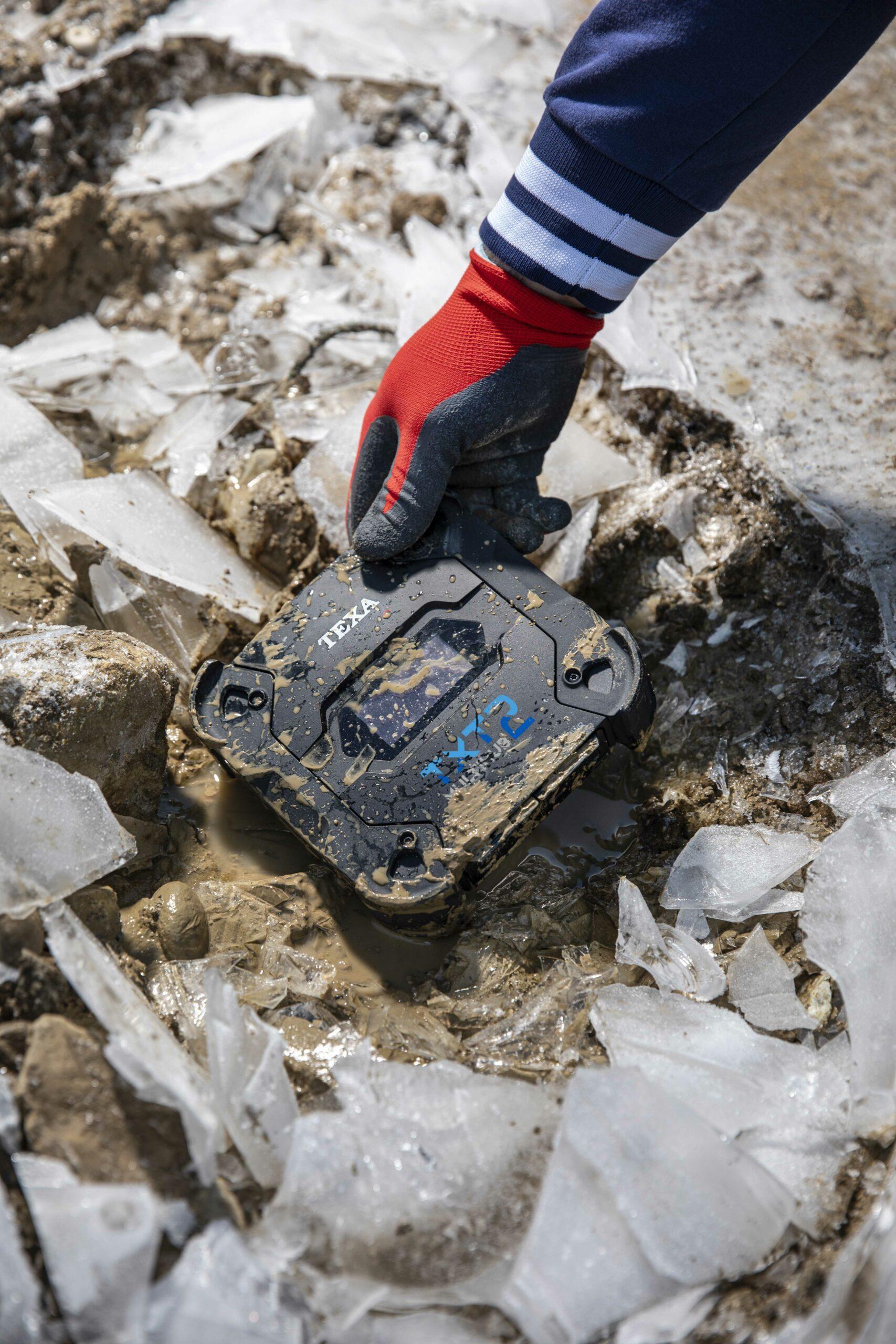

- Rugged, IP53-rated & MIL-STD-810G tested housing resists dust, water splashes, drops.
- Enables DoIP diagnostics over Wi-Fi or Ethernet, ideal for modern vehicles.
- Pass-Thru certified (SAE J2534-1/-2, ISO 22900) for ECU programming.
- CAN-FD support (4 channels) for high-speed data.
- Remote diagnostic capability with expert support over network.
- Pair with TEXA IDC6 software for guided, AI-assisted multi-environment diagnostics.
| Name | - |
|---|---|
| PROCESSOR | iMX6 1 GHz |
| RAM | 512 MByte |
| OPERATING SYSTEM | Operational band: 2400 ~ 2483,5 MHz OR OBD |
| WIRELESS PERIPHERAL DEVICES (built-in) | Bluetooth communication: BDR/EDR/LE1M Wi-Fi communication: WiFi IEEE 802.11 b/g/n20 (2412 ~ 2462 MHz) |

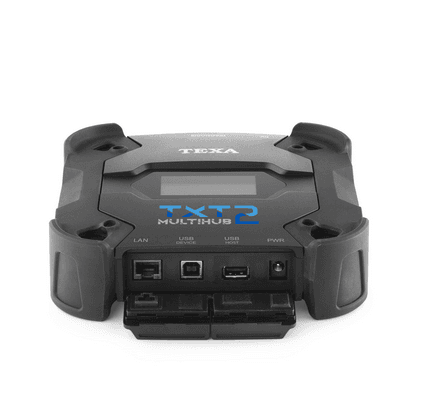

| I/O PERIPHERAL DEVICES | USB: USB 2.0 host type A max 1 A out USB DEVICE: USB 2.0 device type B (priority connector) |
| EXTERNAL POWER SUPPLY | 12 – 24 V (direct voltage) (from vehicle battery via OBD connector or specific wirings) |
| ABSORPTION | 1 A @12 V 0.5 A @24 V |
| OPERATING TEMPERATURE | 0 ÷ 50 °C |
| Mass Storage | eMMC 8 GByte |
| User interface | Display OLED 64×128 dot |
| Dimensions & Weight | Weight: 600 g |
| Supported protocols | Blink codes K, L (with 100 mA current protection), ISO9141-2, ISO14230 CAN ISO11898-2 High Speed CAN_FD 11898-2:2016 4 channels CAN ISO 11898-3 LOW Speed CAN SAE J2411 Single Wire SAE J1850 PWM SAE J1850 VPW SAE J2534-1 SAE J1708 |
| IP protection level | IP53 (With properly closed protective caps) |
| Coprocessor | Type: STM32H735IGK6 550MHz RAM: 2 MByte SRAM, 32 MByte SDRAM Flash: 2 MByte |
