COMPARETEXA RCCS 3 EVO

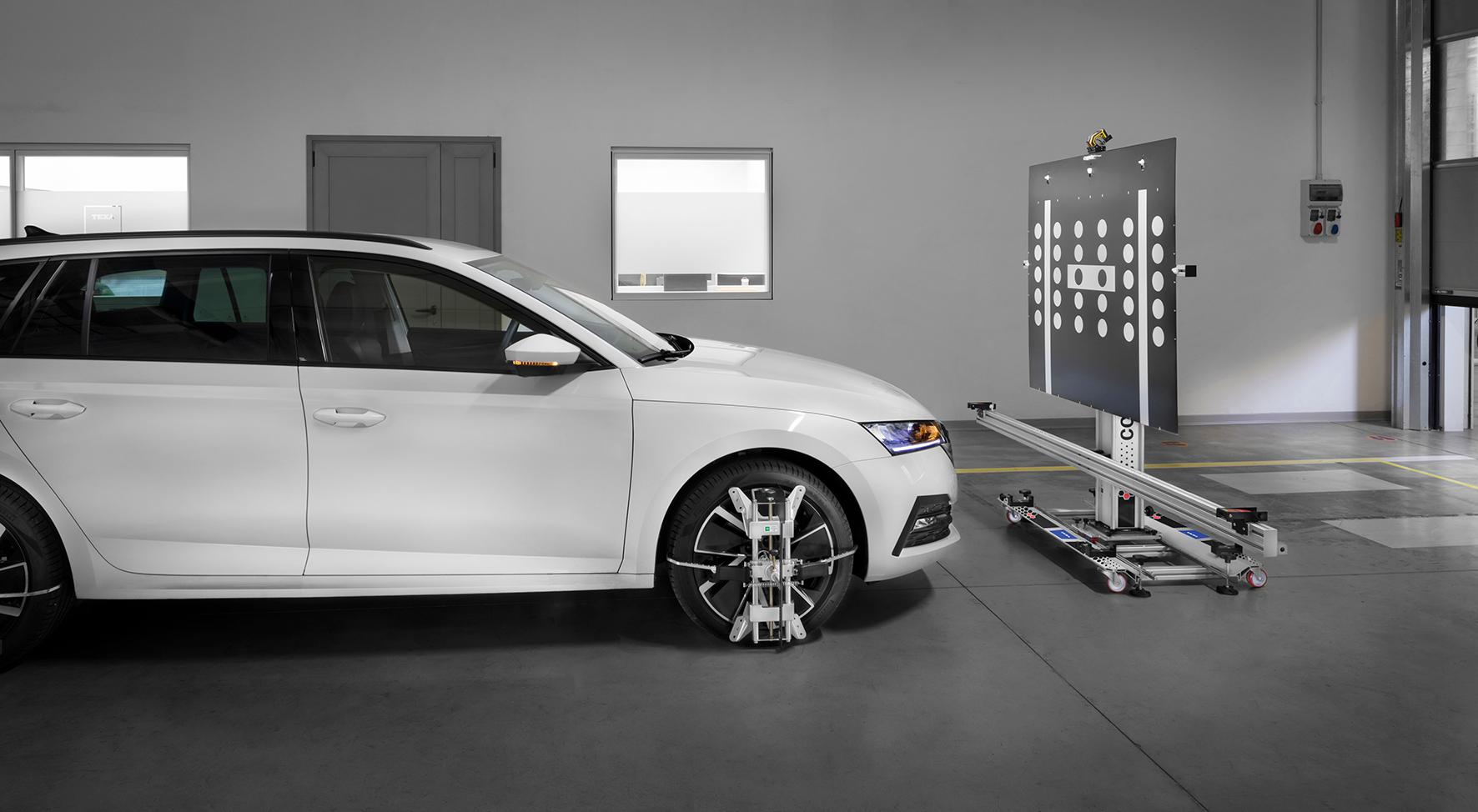

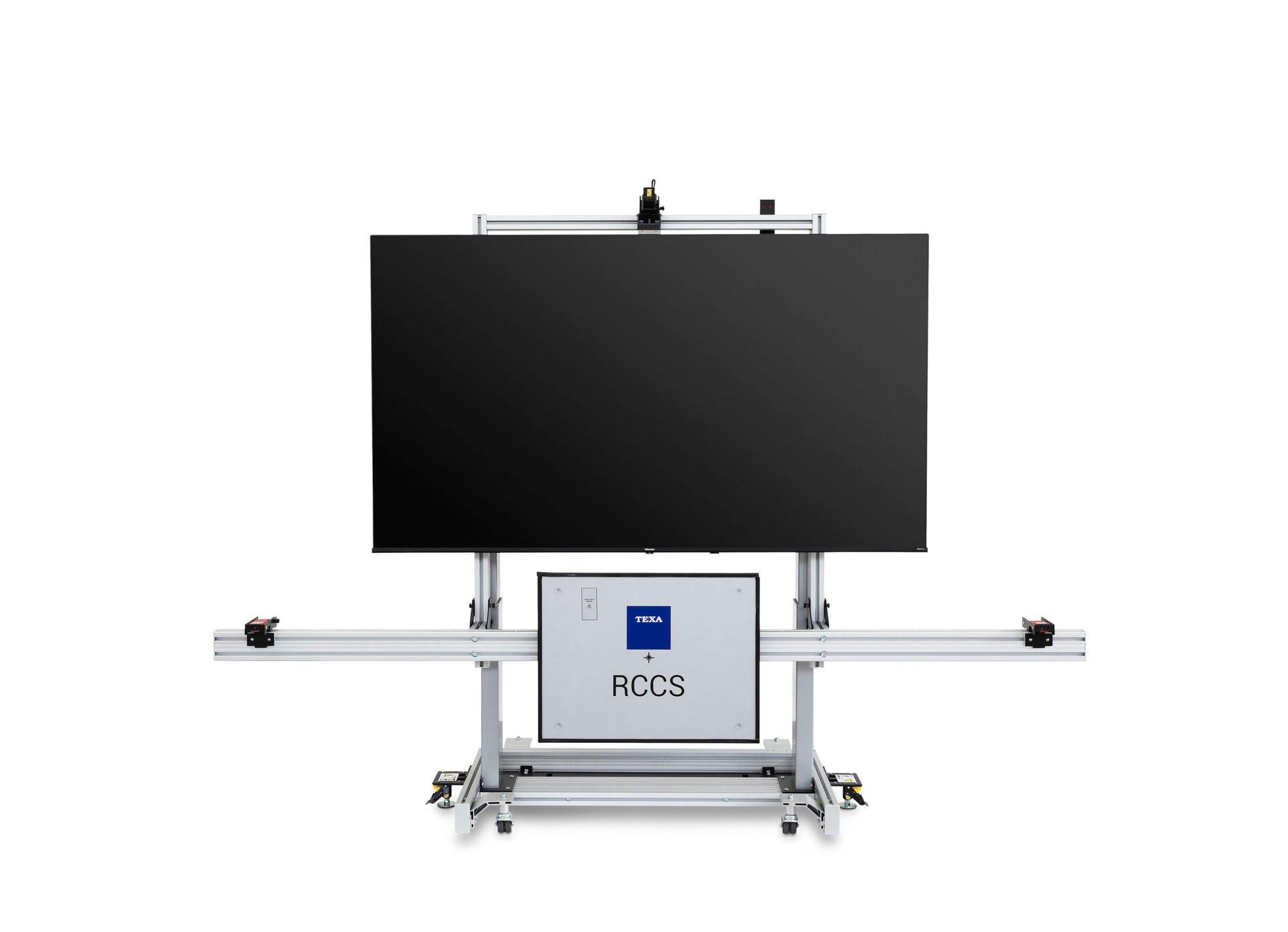

The TEXA RCCS 3 EVO is a cutting-edge, all-in-one ADAS calibration system
designed for radars, cameras, lidars, and sensors. Featuring a 75″ 4K display,
laser-guided alignment, and integrated Mini-PC, it delivers fast, highly accurate
static and dynamic calibrations via IDC6 software—no bulky physical panels needed.
Country of Origin: ITALY
- 75″ 4K high-resolution HD display with true 1:1 panel proportions—no image distortion.

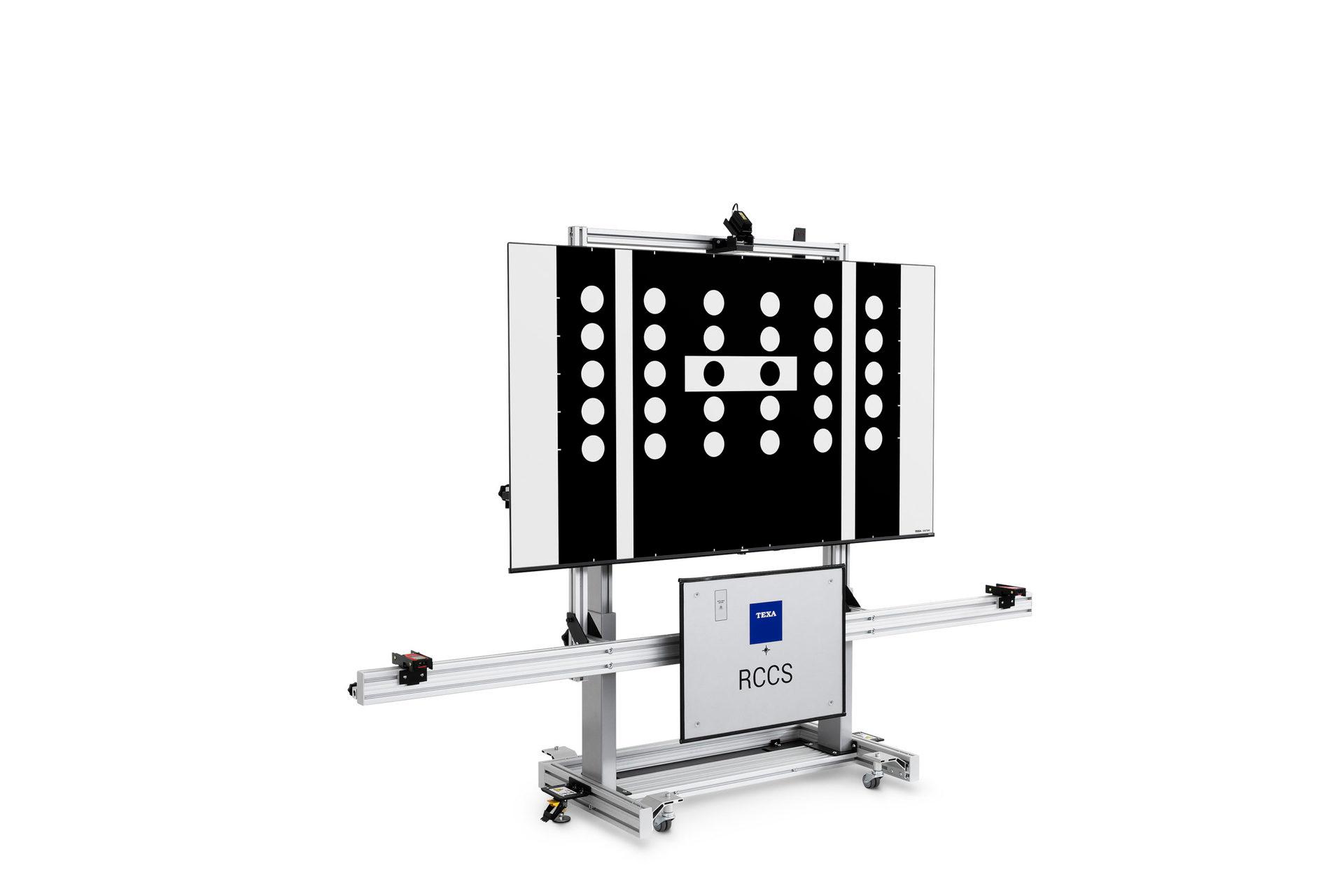

- Digital projection of calibration panels—eliminates bulky physical panels.
- Built-in Mini-PC synchronized with IDC6 software for intelligent, guided calibration.
- Laser-guided alignment instruments and Bluetooth distance measurers for precise positioning.
- Supports static and dynamic calibration of radars, cameras, lidars, and sensors.
- User-friendly with motorized height, tilt, and millimeter-level side adjustment.
- Rugged design with oversized caster wheels for easy maneuvering in workshops.
- Continuous software updates and brand/model-specific guidance via IDC6.
- Includes ADAS expert remote support via call center.
| Name | - |
|---|---|
| Supported Vehicle Types | Cars and light trucks (Toyota, Ford, Honda, GM, VW, etc.) |
| Radar Calibration Tools | Laser pointers, Bluetooth distance sensors, self-centering wheel clamps |
| Monitor size | 75″, 4K UHD, true 1:1 calibration display |
| Mini-PC integrated | Handles IDC6 synchronization and live panel display |
| Motorized workstation | Electric height, tilt, side adjustments; durable castor wheels |
| Software | IDC6-guided workflows with VIN lookup, printable calibration report |
| Supported calibration types | Static and dynamic for various sensor types |
