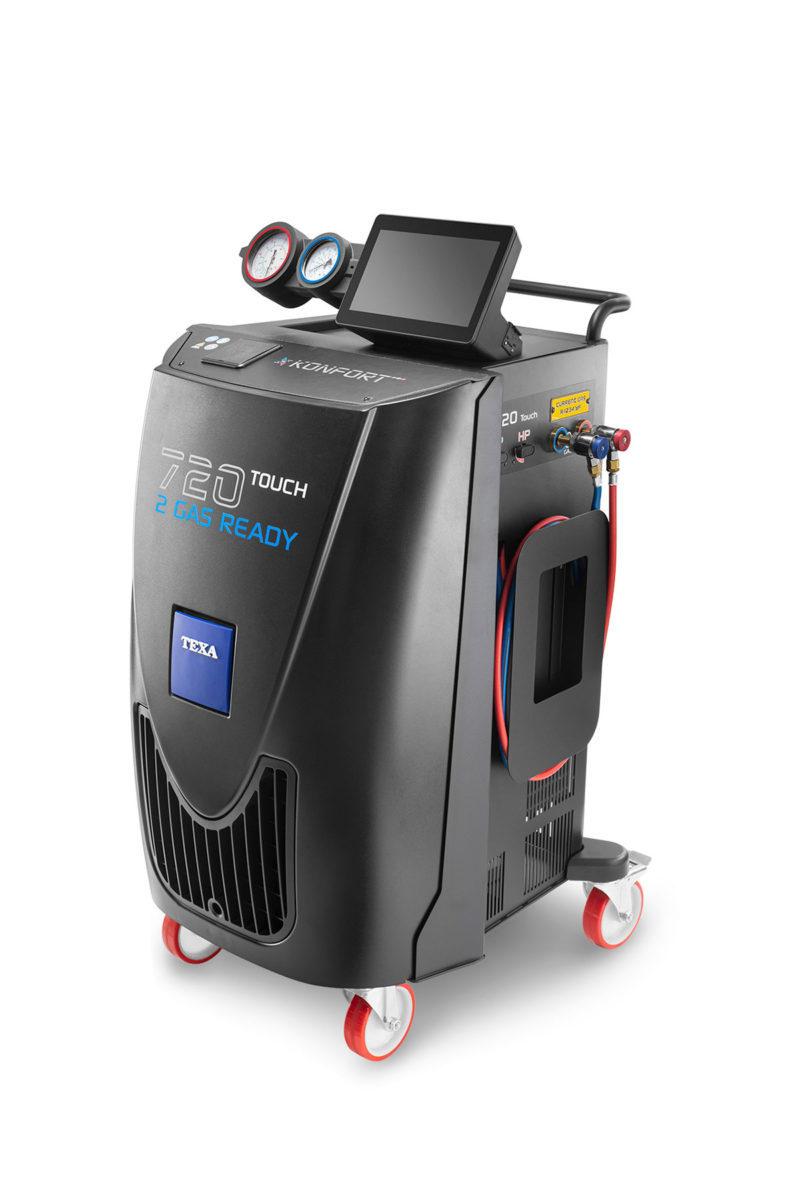

COMPARETEXA Freon charging machine 720 TOUCH
The KONFORT 720 TOUCH is a fully automatic air-conditioning servicing station compatible
with both R134a and R1234yf refrigerants. Designed for use on both cars and trucks,
it offers automatic leak detection, refrigerant weighing with electronic scales,
timed oil and UV tracer injection, hybrid vehicle compatibility,
and maintenance via touchscreen interface—streamlining workshop operations and improving accuracy.
- Country of Origin: ITALY
- Dual-refrigerant compatibility: R134a & R1234yf for cars and trucks.
- Automatic leak detection, refrigerant recovery ≥95%, and timed oil/UV tracer injection.
- 10″ glove-friendly color touchscreen with intuitive Android-based interface.
- Wi-Fi & Bluetooth connectivity for firmware updates, remote assistance, and report printing.
- Two-stage vacuum pump and 12 kg refrigerant tank, with charging accuracy of ±15 g.
- Hybrid vehicle compatibility, automatic hose compensation, and service alarms.
| Name | - |
|---|---|
| Display | 10” touchscreen display |
| GPU | Qualcomm© Adreno™ 308 Graphics Processing Unit (GPU) with 64-bit addressing |
| Touch | Capacitive touch panel, USB/12C interface |
| CPU | SC200R Series Snapdragon QCM2150 Quad-core ARM Cortex-A53 64-bit CPU @ 1.3 Ghz STM32F103 – ARM Cortex M3 32-bit CPU |
| RAM | 2 GB LPDDR3 |
| HAM:Hard disk | 16 GB eMMC |
| Operating system | Android 10.0 |
| Wi-Fi | 802.11a/b/g/n, 150 Mbps, STA/AP/P2P 2402-2480 MHz 5 Ghz |
| Bluetooth | 2.1+EDR/3.0/4.1 LE/4.2 BLE 2400-2483,5 MHz |
| RF power | 20 dBm |
| I/O peripheral | devices USB 2.0 x1 |
| Fluid / Group | R134a/R1234yf |
| Electronic oil and UV tracer scales (Resolution) [g] | Timed UV tracer injection |
| Tank capacity [kg] | 12 kg |
| Vacuum pump | Two-stage |
| Recovery efficiency | > 95 % |
| Power supply voltage [V] | 230V |
| Frequency (Hz) | 50/60 Hz |
| Power [W] | 770W |
| Operation temperature (TS) [°C] | 5 ÷ 40 |
| Storing temperature [°C] | – 25 ÷ 60 |
