Brand: TEXA
COMPARETEXA NAVIGATOR TXT MULTIHUB 2
Model: NAVIGATOR TXT MULTIHUB 2
Country of Origin: Italy

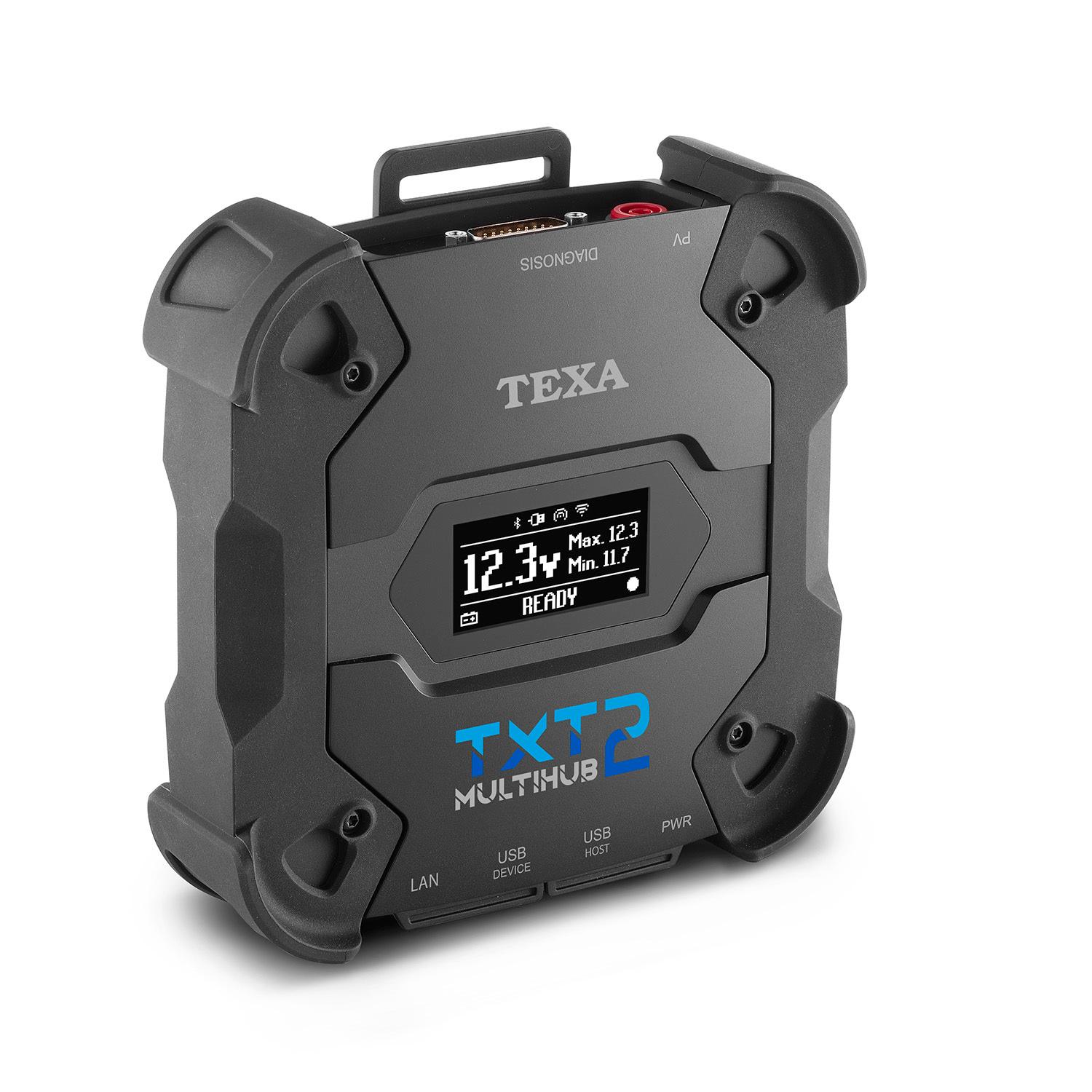

The NAVIGATOR TXT MULTIHUB 2 is TEXA's latest professional vehicle communication interface, designed to provide advanced diagnostics, ECU programming, and multi-environment coverage. It supports the latest communication protocols including DoIP, CAN-FD, and Pass-Thru, with flexible connectivity through Wi-Fi, Bluetooth, USB, and Ethernet, making it an ideal solution for modern automotive workshops.
Multi-Environment Diagnostics
Supports Cars, Trucks, Motorcycles, Agricultural Machinery, Construction Equipment, and Marine Engines with a single diagnostic interface.
Advanced Communication Protocols
Compatible with CAN-FD, DoIP, Pass-Thru, SAE J2534, along with legacy communication protocols for maximum vehicle coverage.
Flexible Connectivity
Supports Wi-Fi, Bluetooth, USB, and Ethernet connections for fast and reliable communication during diagnostics and ECU programming.
Integrated OLED Display
Features a 2.42-inch OLED display that shows communication status, battery voltage, and active diagnostic mode in real time.
Remote Diagnosis
Enables remote diagnostic operations with support from TEXA specialists for advanced repair procedures.
Pass-Thru Programming
Supports SAE J2534 Pass-Thru for ECU software updates and manufacturer-level programming.
Powered by IDC6
Works seamlessly with IDC6 diagnostic software, offering guided diagnostics, intelligent workflow, and AI-powered features through TEXPACK.
Rugged Design
Built with a shock-resistant housing and IP53 protection rating for reliable operation in demanding workshop environments.
TEXA Connected Services
Compatible with TEXPACK, TEX@INFO, and TEXA Security Access services for continuous updates and technical support.
| Name | - |
|---|---|
| Coprocessor | STM32H735IGK6 – 550 MHz |
| EXPANDABILITY | Compatible with TEXA IDC6 Platform & TEXPACK Services |
| BUILT-IN INTERFACE | Wi-Fi, Bluetooth, USB, Ethernet |
| STRUCTURE | Reinforced Housing with Shock-resistant Corners |
| CERTIFICATIONS | IP53 Certified |
| BATTERY | Powered by Vehicle (No Internal Battery) |
| COOLING | Passive Cooling |
| GRAPHICS | OLED Graphic Display |
| Screen Size | 2.42-inch OLED Display |
| Connectivity | Wi-Fi, Bluetooth, USB, Ethernet |
| Language Support | Multi-language Support |
| Updates | TEXPACK Software Updates |
| Diagnosis | Multi-brand Diagnostics with IDC6 |
| Compatibility | Cars, Trucks, Motorcycles, Marine, Agricultural & Construction Vehicles |
| Connectors | OBD-II Connector, USB, Ethernet |
| IP protection level | IP53 |
| Supported protocols | CAN, CAN-FD, DoIP, SAE J2534-1, SAE J2534-2, ISO9141-2, ISO14230, SAE J1850 PWM/VPW, J1708, Blink Codes |
| Dimensions & Weight | Weight: 600 g |
| User interface | OLED Display with Status Information |
| Mass Storage | 8 GB |
| Internal Flash memory | 8 GB eMMC |
| OTHER FUNCTIONS | Remote Diagnosis, Pass-Thru, DoIP, CAN-FD, TEX@INFO Support |
| OPERATING TEMPERATURE | 0°C to +50°C |
| ABSORPTION | Powered by Vehicle (12–24V DC) |
| EXTERNAL POWER SUPPLY | 12–24 V DC from Vehicle |
| ROBUSTNESS | Rugged Design with Shock-resistant Corners |
| LEDs | OLED Status Display |
| I/O PERIPHERAL DEVICES | USB, Ethernet, OBD Diagnostic Connector |
| WIRELESS PERIPHERAL DEVICES (built-in) | Wi-Fi & Bluetooth |
| VIDEO PERIPHERAL DEVICES (built-in) | شاشة OLED مدمجة مقاس 2.42 بوصة بدقة 128×64 مع إضاءة خلفية بيضاء |
| OPERATING SYSTEM | N/A (Works with IDC6 via Display Unit) |
| HARD DISK | 8 GB eMMC Storage |
| RAM | 512 MB DDR3L RAM |
| PROCESSOR | NXP i.MX6 Processor, 1 GHz |
