Brand: TEXA
COMPARETEXA NAVIGATOR NANO S2
Model: NAVIGATOR NANO S2
Country of Origin: Italy

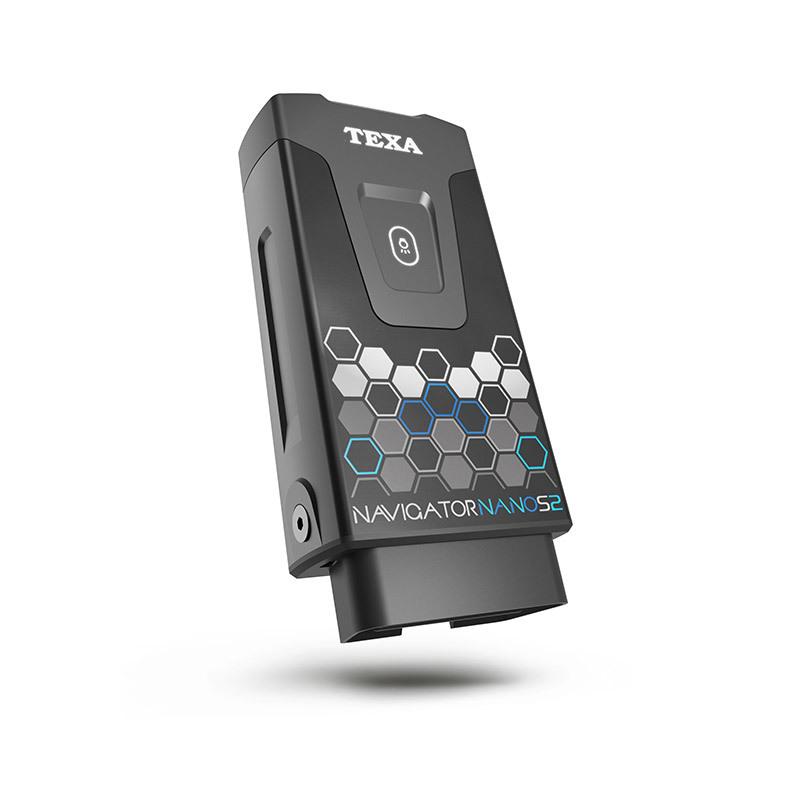

The TEXA NAVIGATOR NANO S2 is a compact, lightweight, and ergonomic vehicle diagnostic interface designed specifically for passenger cars. It supports the latest communication protocols, integrates seamlessly with IDC6 software, and delivers fast, reliable diagnostics for modern workshops.
Latest Cortex-M7 Processor
Powered by a Cortex-M7 processor running at up to 550 MHz for fast diagnostic performance.
Advanced Protocol Support
Supports CAN FD, DoIP, K-Line, L-Line, SAE J1850, and multiple CAN protocols for maximum vehicle compatibility.
Compact & Lightweight Design
Weighs only 72 g, making it easy to carry and convenient for everyday workshop use.
Wireless & Wired Connectivity
Features Bluetooth 5.0 Class 1 for stable wireless communication and USB Type-C for wired connection and charging.
IDC6 Software Integration
Works seamlessly with IDC6, providing an intuitive interface and guided diagnostic procedures.
TEXPACK Subscription
Provides continuous software updates, new vehicle coverage, AI-powered diagnostic functions, and the latest market technologies.
TEX@INFO Support
Offers professional technical information and diagnostic assistance for faster troubleshooting.
TEXA Security Access
Enables access to protected vehicle systems by unlocking Security Gateway functions on supported vehicles.
Multi-Protocol Compatibility
Supports three simultaneous CAN FD channels along with traditional diagnostic protocols for broad vehicle coverage.
User-Friendly Interface
Equipped with 4 RGB LED indicators and a built-in buzzer for clear device status notifications.
Large Internal Memory
Includes 8 GB eMMC storage with 564 KB RAM for efficient data processing and diagnostics.
Professional Technical Support
Direct access to the TEXA Call Center for expert assistance and continuous technical support.
| Name | - |
|---|---|
| PROCESSOR | Cortex-M7 Processor, up to 550 MHz |
| RAM | 564 KB RAM |
| HARD DISK | 8 GB eMMC Internal Storage |
| AUDIO PERIPHERAL DEVICES (built-in) | Built-in Buzzer |
| WIRELESS PERIPHERAL DEVICES (built-in) | Bluetooth 5.0 Class 1 |
| I/O PERIPHERAL DEVICES | USB Type-C |
| LEDs | 4 RGB LED Indicators |
| Language Support | Multi-language Support (via IDC6) |
| Updates | TEXPACK Software Updates |
| Diagnosis | Passenger Car Diagnostics |
| Compatibility | Passenger Cars |
| Connectors | OBD Connector, USB Type-C |
| Connectivity | Bluetooth 5.0, USB Type-C |
| COOLING | Passive Cooling |
| BATTERY | 3.7V Lithium Polymer Rechargeable Battery |
| STRUCTURE | Compact, Lightweight, Rugged Housing |
| BUILT-IN INTERFACE | Bluetooth 5.0, USB Type-C |
| EXPANDABILITY | Compatible with TEXPACK & TEX@INFO Services |
| Supported protocols | CAN FD (3 Channels), DoIP (ISO 13400-3), CAN ISO11898-3, CAN SAE J2411, ISO9141-2, ISO14230, SAE J1850 PWM/VPW, Blink Codes |
| Dimensions & Weight | Weight: 72 g |
| User interface | LED Status Indicators & Buzzer |
| Mass Storage | 8 GB |
| Internal Flash memory | 8 GB eMMC |
| OTHER FUNCTIONS | TEXPACK, TEX@INFO, TEXA Security Access, IDC6 Integration |
| ABSORPTION | Powered via Vehicle/USB |
| EXTERNAL POWER SUPPLY | USB Type-C |
| INTERNAL BATTERY | 3.7V Lithium Polymer Battery |
| ROBUSTNESS | Compact, Rugged and Ergonomic Design |
