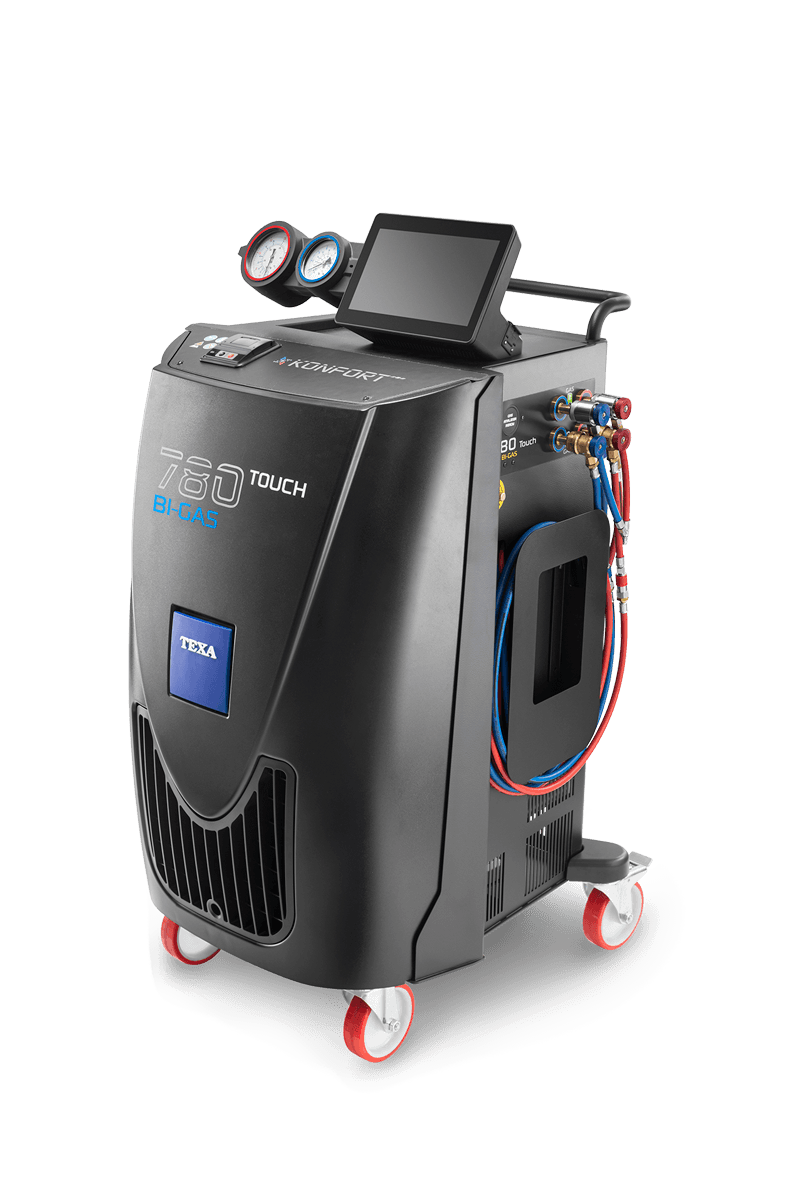

COMPARETEXA Freon charging machine 780 TOUCH
The 780 TOUCH is TEXA’s flagship Konfort unit, capable of servicing both R134a and R1234yf
refrigerants. Featuring two separate tanks and circuits, it allows quick switching between refrigerants.
Fully automatic service includes recovery, recycling, recharging, leak detection, oil/UV tracing, and flushing.
- Country of Origin: ITALY
- Dual refrigerant management: R134a & R1234yf.
- Fully automatic service (recovery, recycling, recharging).
- Leak detection, electronic refrigerant & oil measurement.
- Hybrid vehicle compatibility.
- 10″ touchscreen with glove-touch tech, high brightness.
- Wi-Fi, Bluetooth, USB, and KONFORT App support.
- Dual 12 kg tanks, ±15 g charging accuracy.
- Two-stage vacuum pump, recovery > 95% efficiency.
- Scale locking system, flushing for oil & gas circuits.
- Multi-language, database modes (Standard, Customized, My Database).
- Remote assistance, auto updates.
- Automatic oil bottle recognition (patent pending).
- Simplified maintenance.
- Automatic management of non-condensable gases.
- Automatic, high-precision oil injection.
- Automatic updates.
OPTIONAL
- Refrigerant identifier kit.
- Flushing kit.
- A/C system efficiency kit.
- Leak detection kit with Forming Gas.
| Name | - |
|---|---|
| Display | 10” touchscreen display |
| GPU | Qualcomm© Adreno™ 308 Graphics Processing Unit (GPU) with 64-bit addressing |
| Touch | Capacitive touch panel, USB/12C interface |
| CPU | SC200R Series Snapdragon QCM2150 Quad-core ARM Cortex-A53 64-bit CPU @ 1.3 Ghz STM32F103 – ARM Cortex M3 32-bit CPU |
| RAM | 2 GB LPDDR3 |
| HAM:Hard disk | 16 GB eMMC |
| Operating system | Android 10.0 |
| Audio peripheral | devices 1 speaker CES-703116-28PM 8ohm 2W |
| Wi-Fi | 802.11a/b/g/n, 150 Mbps, STA/AP/P2P 2402-2480 MHz 5 Ghz |
| Bluetooth | 2.1+EDR/3.0/4.1 LE/4.2 BLE 2400-2483,5 MHz |
| RF power | 20 dBm |
| I/O peripheral | devices USB 2.0 x1 |
| Fluid / Group | R134a and R1234yf |
| Electronic refrigerant scale (Precision) [g] | ±15Kg |
| Electronic oil and UV tracer scales (Resolution) [g] | - |
| High pressure gauge [mm] | Ø 80 |
| Low pressure gauge [mm] | Ø 80 |
| Tank capacity [kg] | 2 x 12 kg tanks |
| Vacuum pump | Two-stage |
| Recovery efficiency | > 95 % (SAE J2788 / SAE J2843) |
| Power supply voltage [V] | 230V |
| Frequency (Hz) | 50/60 Hz |
| Power [W] | 770W |
| Operation temperature (TS) [°C] | 5 ÷ 40 |
| Storing temperature [°C] | – 25 ÷ 60 |
