COMPARETEXA FREON CHARGING MACHINE 712 R TOUCH

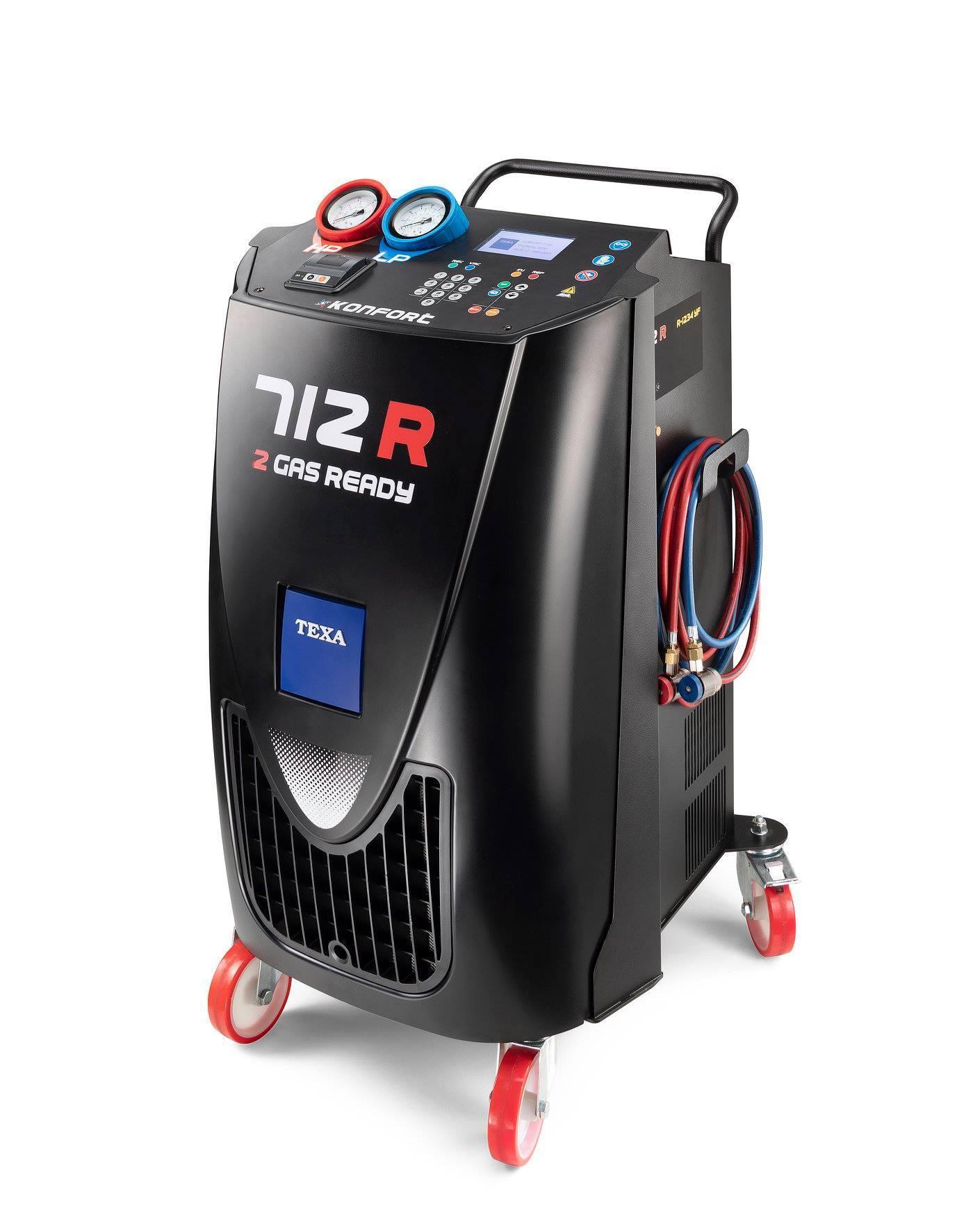

The TEXA KONFORT 712R is a fully automatic A/C service station designed to handle
both R134a and R1234yf refrigerants with complete flexibility. It features a large color TFT display,
advanced database management via USB, a 12 kg refrigerant tank,
and a two-stage high-performance vacuum pump. This model belongs to the KONFORT 700 series,
ensuring high precision, user-friendly operation, and compliance with the latest automotive A/C service requirements.
- Country of Origin: ITALY
- Compatible with R134a and R1234yf (dual gas version available).
- Large 5” color TFT display for easy navigation.
- Advanced database management via USB connection (service, customized, My Database modes).
- 12 kg refrigerant tank capacity.
- Two-stage vacuum pump for deeper and faster evacuation.
- High charging accuracy ±15 g.
- Automatic oil and UV tracer injection with electronic scales.
- Fully automatic operation with minimal manual intervention.
- Multi-language software interface.
- Automatic service hose length compensation.
- Integrated flushing function (optional kit).
- Wi-Fi & Bluetooth connectivity for updates and remote support.
- Built-in pressure and temperature sensors for safe operation.
- Automatic maintenance reminders and self-diagnosis.
- Ergonomic design with puncture-proof wheels for workshop mobility.
| Name | - |
|---|---|
| Display | 7” TFT IPS 1024×600 400CD |
| GPU | Qualcomm© Adreno™ 308 Graphics Processing Unit (GPU) with 64-bit addressing |
| Touch | Capacitive touch panel, USB/12C interface |
| CPU | SC200R Series Snapdragon QCM2150 Quad-core ARM Cortex-A53 64-bit CPU @ 1.3 Ghz STM32F103 – ARM Cortex M3 32-bit CPU |
| RAM | 2 GB LPDDR3 |
| HAM:Hard disk | 16 GB eMMC |
| Operating system | Android 10.0 |
| Audio peripheral | devices 1 speaker CES-703116-28PM 8ohm 2W8ohm 2W |
| Wi-Fi | 802.11a/b/g/n, 150 Mbps, STA/AP/P2P 2402-2480 MHz 5 Ghz |
| Bluetooth | 2.1+EDR/3.0/4.1 LE/4.2 BLE 2400-2483,5 MHz |
| RF power | 20 dBm |
| I/O peripheral | devices USB 2.0 x1 |
| Fluid / Group | R134a / R1234yf/R456a |
| Electronic refrigerant scale (Precision) [g] | ±15Kg |
| Electronic oil and UV tracer scales (Resolution) [g] | - |
| High pressure gauge [mm] | Ø 80 |
| Low pressure gauge [mm] | Ø 80 |
| Tank capacity [kg] | 10 kg |
| Vacuum pump | Two-stage, 100 L/min |
| Recovery efficiency | > 95 % (SAE J2788 / SAE J2843) |
| Power supply voltage [V] | 230V |
| Frequency (Hz) | 50/60 Hz |
| Power [W] | 770W |
| Operation temperature (TS) [°C] | 5 ÷ 40 |
| Storing temperature [°C] | – 25 ÷ 60 |
| Primary battery | 3 V CR2032 |
| Secondary battery | NiMh 2,4 V – 600 mAh |
| Pressure transducer | Kl. 1.0 |
| Service pipes’ length [m] | 3m |
| Filter assembly | 1 combined filter + mechanical filter |
| Compressor (airtight) [cc] | 12cc |
| Ambient temperature sensor (Resolution) [°C] | 1 |
| Refrigerant purity [kg] | 150 (SAE J2099) |
| Maximum operating pressure (PS) [bar] | 20bar |
| Safety device calibration [bar] | 20bar |
| Dimensions [mm] | H: 1101 L: 598 P: 706 |
| Weight [kg] | 90Kg |
